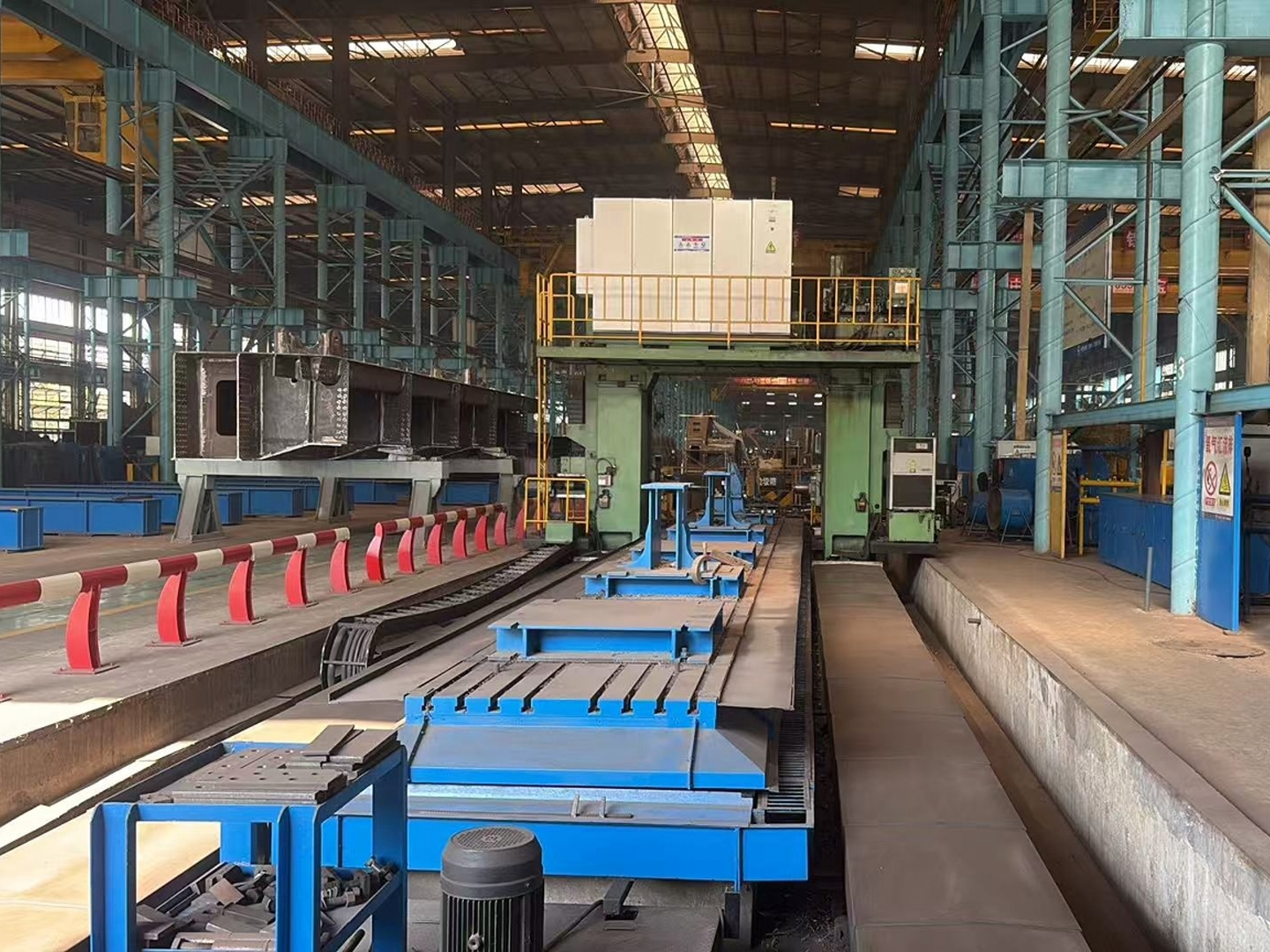

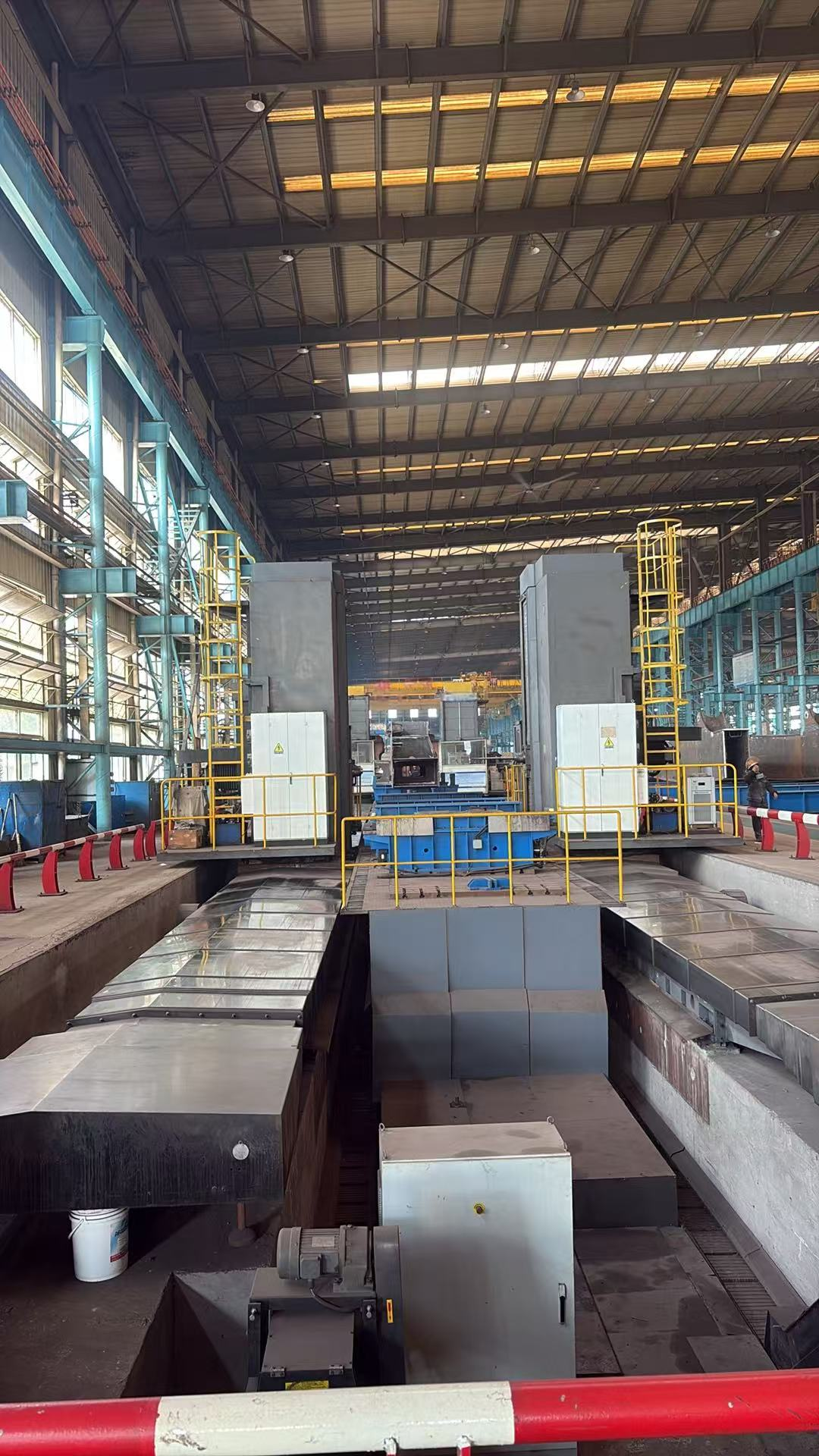

U Rib double side cnc drilling machine

1.Introduction for U Rib double side cnc drilling machine：

1.1Technical Description

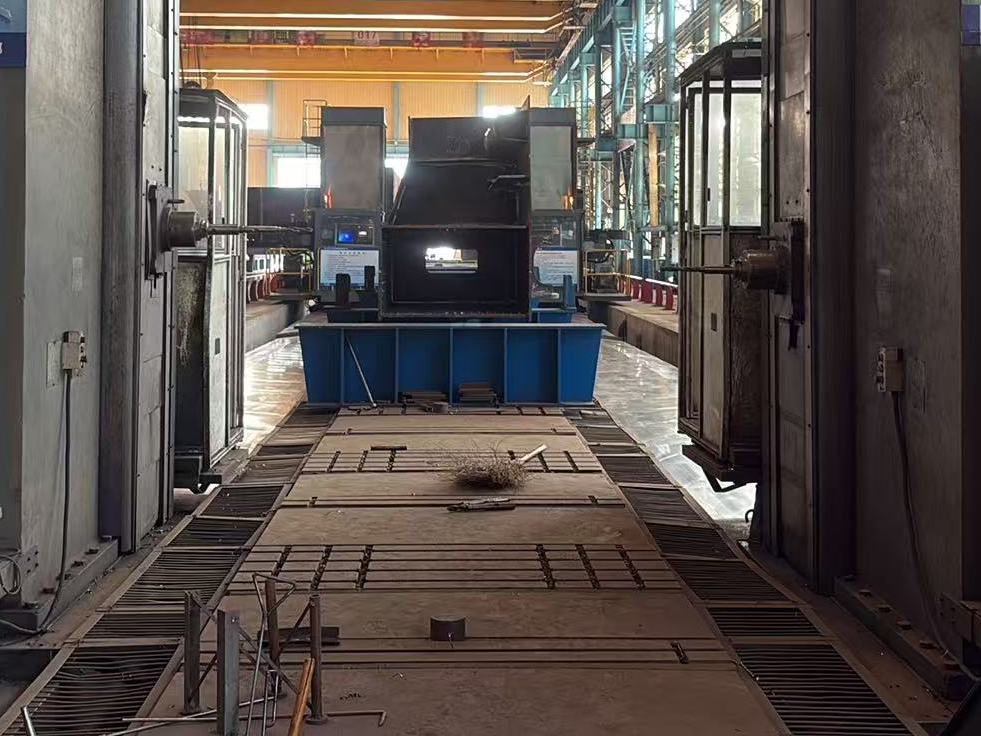

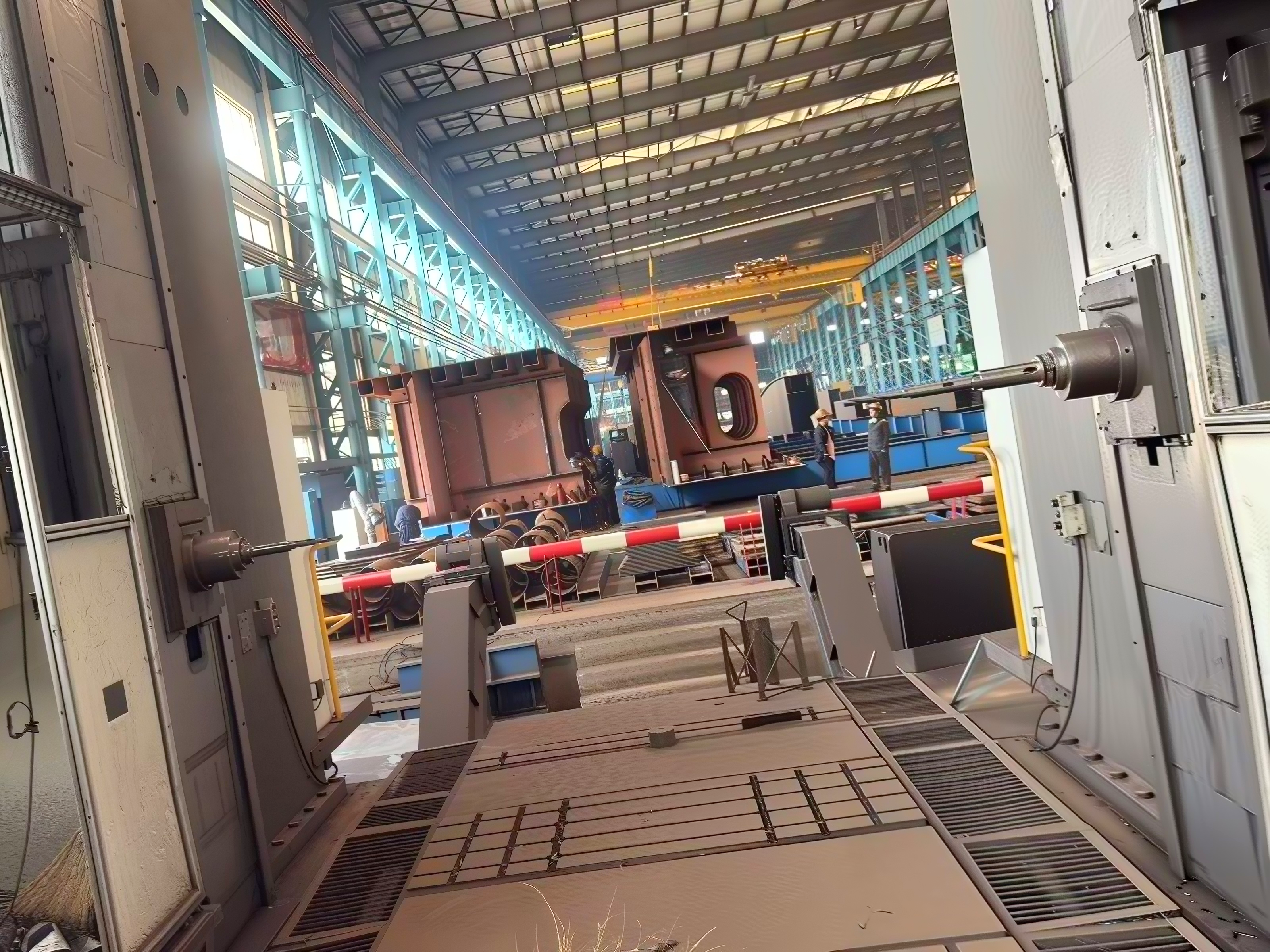

1).The power heads of the two sides' drilling machines move vertically along the Y-axis; the drilling head is horizontally and vertically positioned on the column along the X and Z axes, while the workpiece remains stationary.

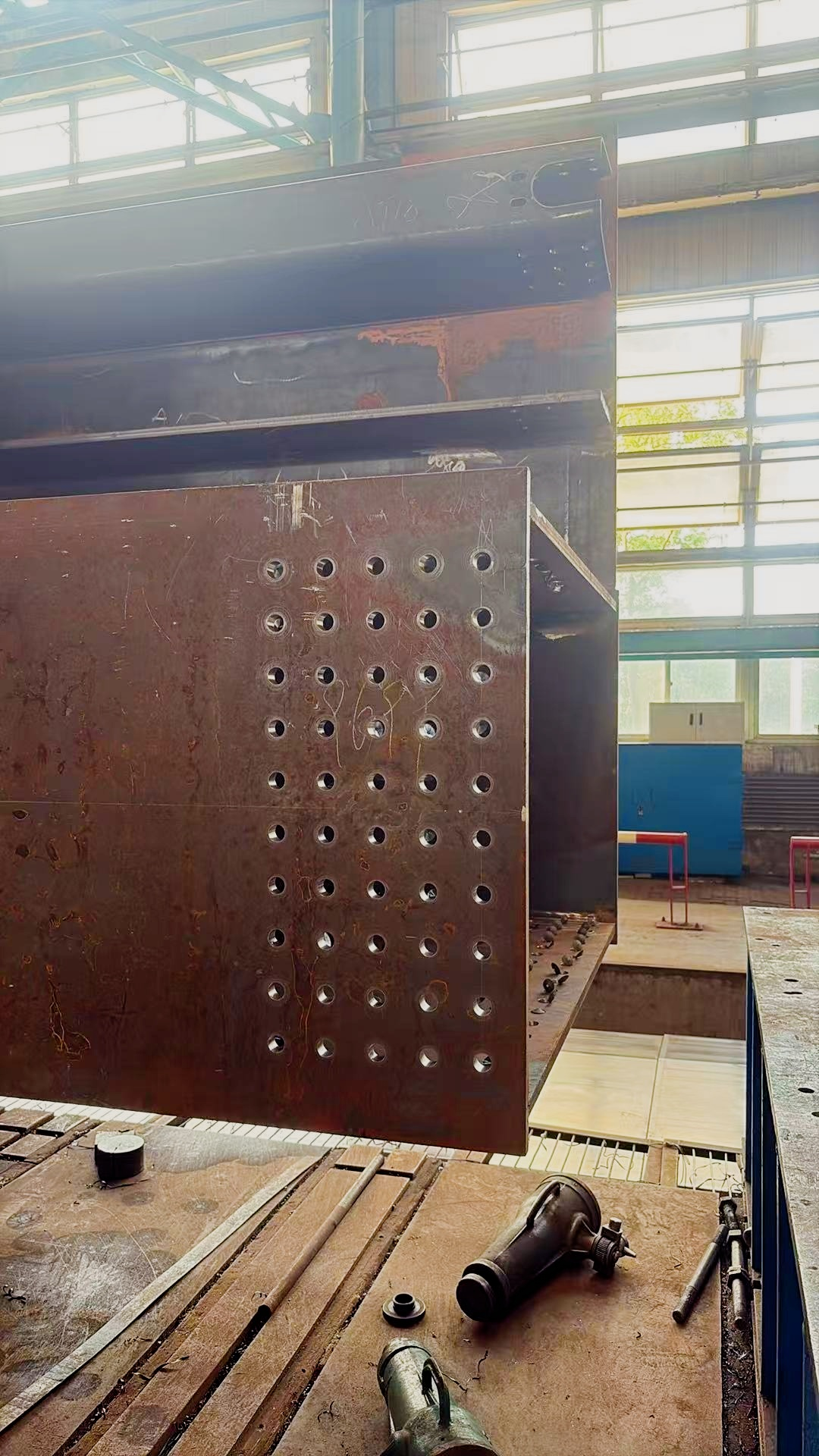

2). There is no need to mark lines or punch holes on the workpiece. The main spindle of the drilling head automatically moves to the position where the hole needs to be drilled, approaches the workpiece quickly, then automatically switches to the working speed for feed. After the workpiece is drilled through, the drill bit automatically retreats beyond the workpiece plane and then moves rapidly to the next drilling position.

3). Regardless of the number of holes on the workpiece, the entire processing process is carried out automatically. It relies on computer, numerical control system, programmable controller, servo amplifier, servo motor, and photoelectric encoder. These components are all imported high-quality products with high reliability.

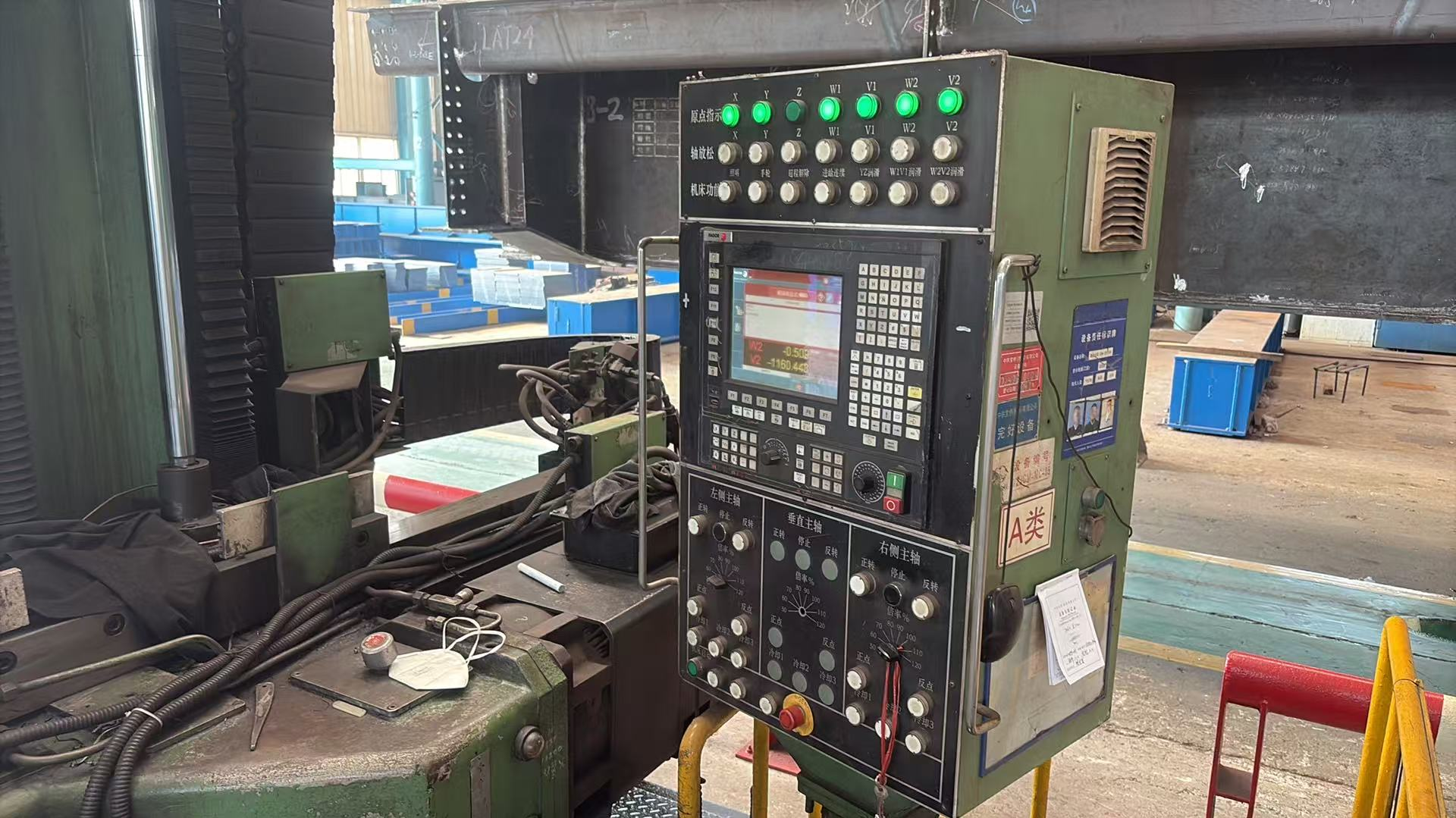

4). The operator only needs to learn to input the workpiece size into the computer. It can be input once and then repeatedly called. There is no need to compile complex processing programs by oneself. The internal software provides many conveniences for you.

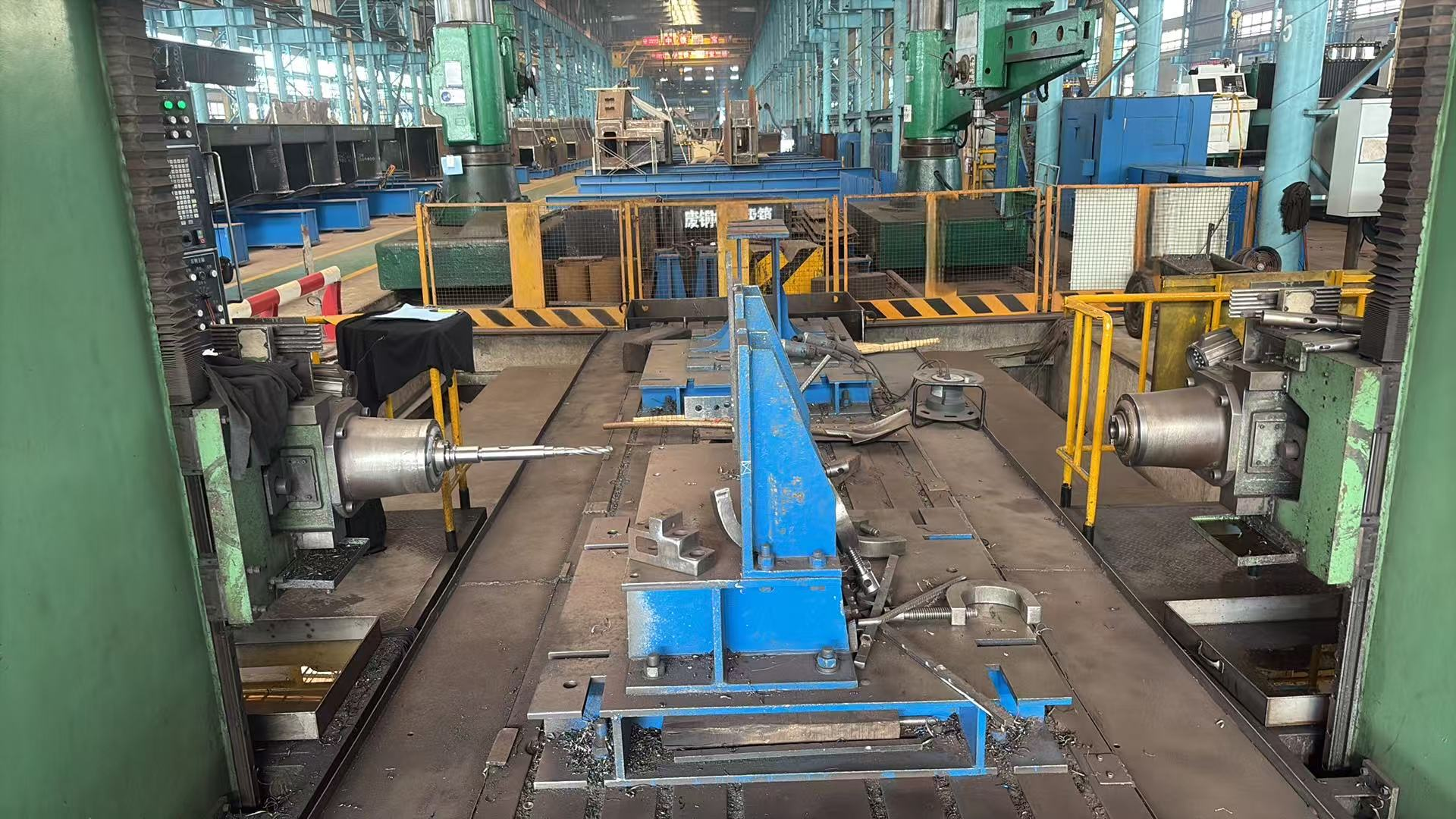

5). The workpiece is clamped on the worktable by hydraulic clamps. Each workpiece is clamped by at least three clamps.

6). Each clamp has a positioning surface. These positioning surfaces connect the workpiece and the numerical control coordinate origin of the machine. The position of the clamp can be adjusted along the precise T-slot of the worktable according to the shape and size of the workpiece, to make the clamping position most advantageous.

7). The coolant spray pipe is flexible and can directly spray to the drilling position. Or the coolant is discharged from the drill bit and sprayed from the inside of the workpiece, with better cooling effect. The side guards around the worktable effectively prevent iron filings and coolant from flying outwards. The air nozzle can blow away the iron filings on the workpiece surface according to requirements before drilling.

8). In the main spindle hole of the drilling machine, there is a quick-change drill chuck equipped with 2#, 3#, and 4# mode taper holes. The drill sleeve can be quickly installed on this chuck or removed, so when there are several diameters of holes on one workpiece, changing the drill bit does not take much time.

9). The large amount of iron filings generated during drilling fall into the coolant box on the worktable and then are lifted by the chain of the chip remover and fall into the chip basket. The basket has wheels and can be tilted, making it convenient for the removal of iron filings.

10). The coolant flows into the coolant box at the lower part of the chip remover and then is transported by the coolant pump to the nozzles for circulation.

11). At both ends of the drilling machine, there are compressed air nozzles used to blow away the chips on the support plate and clamps, ensuring the correct installation position of the workpiece. The chips on the inclined surface of the base can also be blown onto the chain of the chip remover by the nozzle.

12). At both ends of the drilling machine, there are emergency stop buttons.

2.Technical parameter for U Rib double side cnc drilling machine:

3. Characters for U Rib double side cnc drilling machine:

3.1 High productivity: High-speed CNC positioning, high-power high-speed drilling power head, allowing the use of carbide drills, coated strong-duty drills, high-speed large-volume drilling, and sufficient coolant supply.

3.2 Accuracy: AC servo motor drive, ball screw pair transmission, both the XY axis and the moving worktable move on linear rolling guides, ensuring full guarantee of relevant position accuracy in component processing and assembly.

3.3 High reliability: CNC system, servo motor, PLC contactless switches, photoelectric encoders are high-quality imported components, and the linear guides are imported ultra-large load type.

3.4 Simple operation: The workpiece is clamped by hydraulic clamps, the chips generated by drilling are removed by the chip remover, the drill bit is equipped with a quick-change drill chuck, the drill bit stroke is digitally controlled, the program is simple to compile, and the storage capacity is large.

3.5 Strong process adaptability: The two-sided drilling column can perform drilling tasks independently or jointly according to the drilling requirements of the workpiece, the hydraulic clamp is convenient to move, and it can adapt to various sizes of workpieces.

4. Technical standards:

4.1. This equipment is a brand-new one (including all components, parts and accessories), and is suitable for processing all the products as required.

4.2. The structural design of this equipment is reasonable, with sufficient strength, rigidity and good stability. Its components have good wear resistance and small thermal deformation. All large welded parts and castings of this equipment should undergo appropriate heat treatment to ensure the accuracy and reliability of the equipment. This equipment can work normally and continuously for 24 hours under environmental temperature ranging from -5℃ to 45℃ and relative humidity not exceeding 95%. The accuracy is stable.

4.3. The components of this equipment are made of high-quality materials. The selected mechanical, hydraulic, electrical and electronic components are of high quality, mature and reliable series products.

4.4. This equipment has reliable safety protection, alarm and insurance measures to prevent damage to the equipment or personal injury due to incorrect operation or unexpected accidents.

4.5. The measurement units of all parts and instruments of this equipment and all drawings and materials are all in international units (SI) standards. The design, manufacture and materials of all instruments and components comply with ISO and IEC standards.

4.6. This equipment is technologically advanced, intuitive and simple to operate, and easy to maintain and repair.
