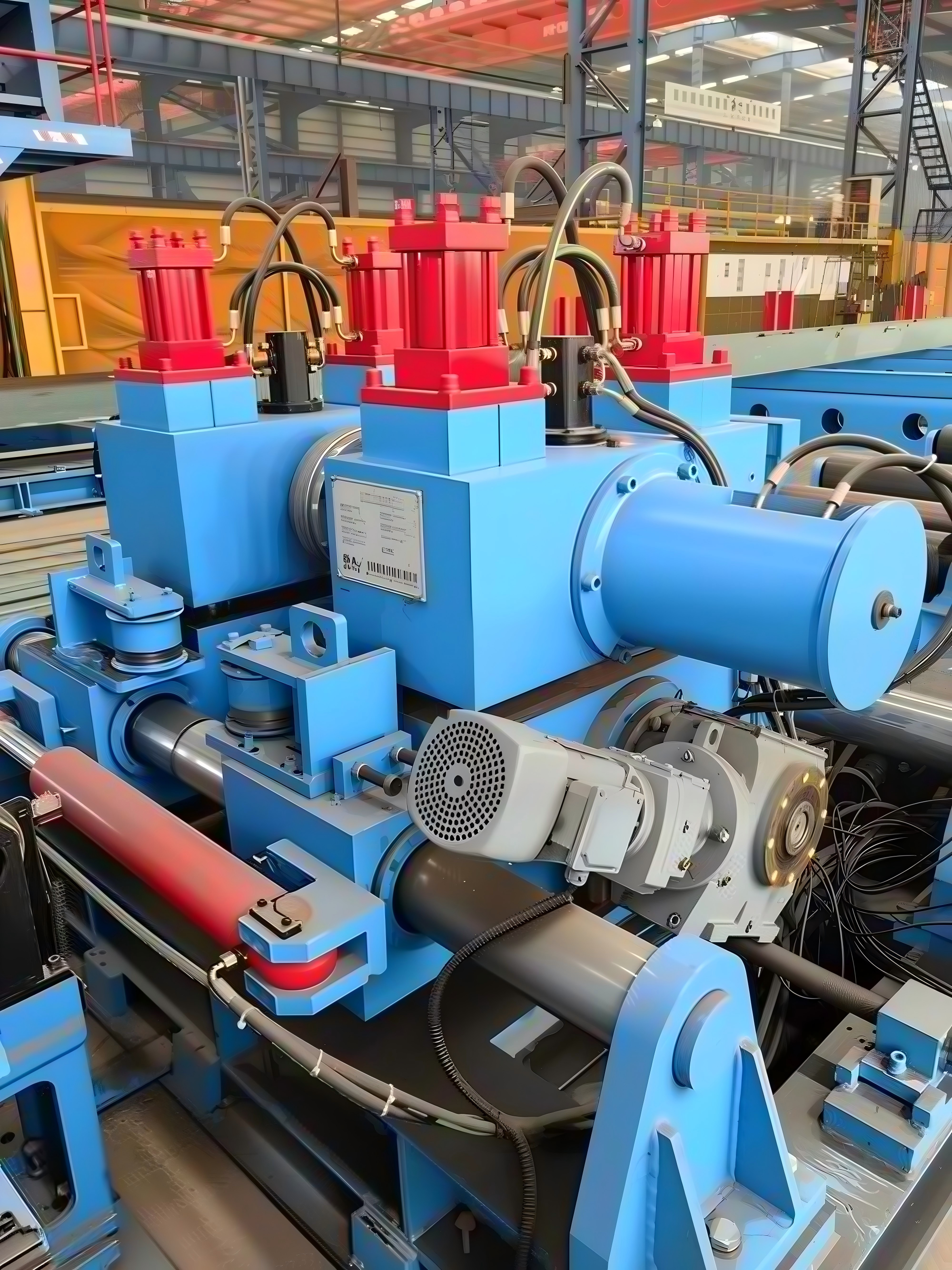

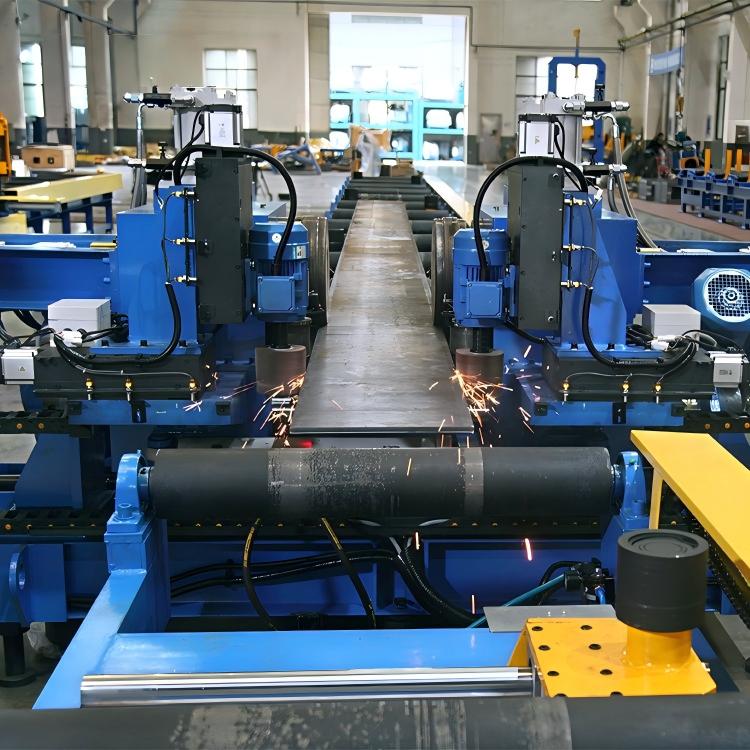

T beam flange chamfering machine

1.Introduction for T beam flange chamfering machine：

Product model and name: Panel beveling machine. Equipment application: This machine utilizes the rolling principle to quickly and efficiently roll the edges of material blanks, transforming them into rounded corners. It can replace the traditional manual deburring and chamfering processes. The rounded corner process is uniform, the surface is beautiful, the production efficiency is high, the labor intensity of workers is low. Through the rolling of the edges of the sheet, the stress concentration of the sheet edges is greatly reduced. This machine is particularly effective in sheet welding, anti-corrosion and preventing sheet paint peeling. It has the same high efficiency for both large-scale production and small-batch production. It is an ideal matching equipment for ship plate beveling.

2.Technical parameter for T beam flange chamfering machine:

3.Characters for T beam flange chamfering machine:

3.1Structure

This machine is a stand-alone unit and mainly consists of the following components.

A: The main unit is composed of the main body of the machine, two movable boxes, upper and lower pressing wheels, front conveying roller track, and rear conveying roller track, etc.

B: Hydraulic system: hydraulic station, pipeline system.

C: Pneumatic system: air valves, pneumatic pipelines, etc.

D: Electrical control box and operation panel.

3.2 Scope range

A: Beveling machine  Includes: upper and lower housings, hydraulic actuator, beveling drive unit.

B: Roller conveyor  Includes: front roller conveyor 12 meters, rear roller conveyor 12 meters, 4 meters of each passive roller conveyor (each 16 meters).

C: Hydraulic system  Includes: hydraulic station, hydraulic pipelines, hydraulic components.

D: Electrical system  Includes: electrical cabinet, operation box, wiring.

3.3Configurations
