U Rib assembly machine
Product Parameters
1.Introduction for U Rib assembly machine：

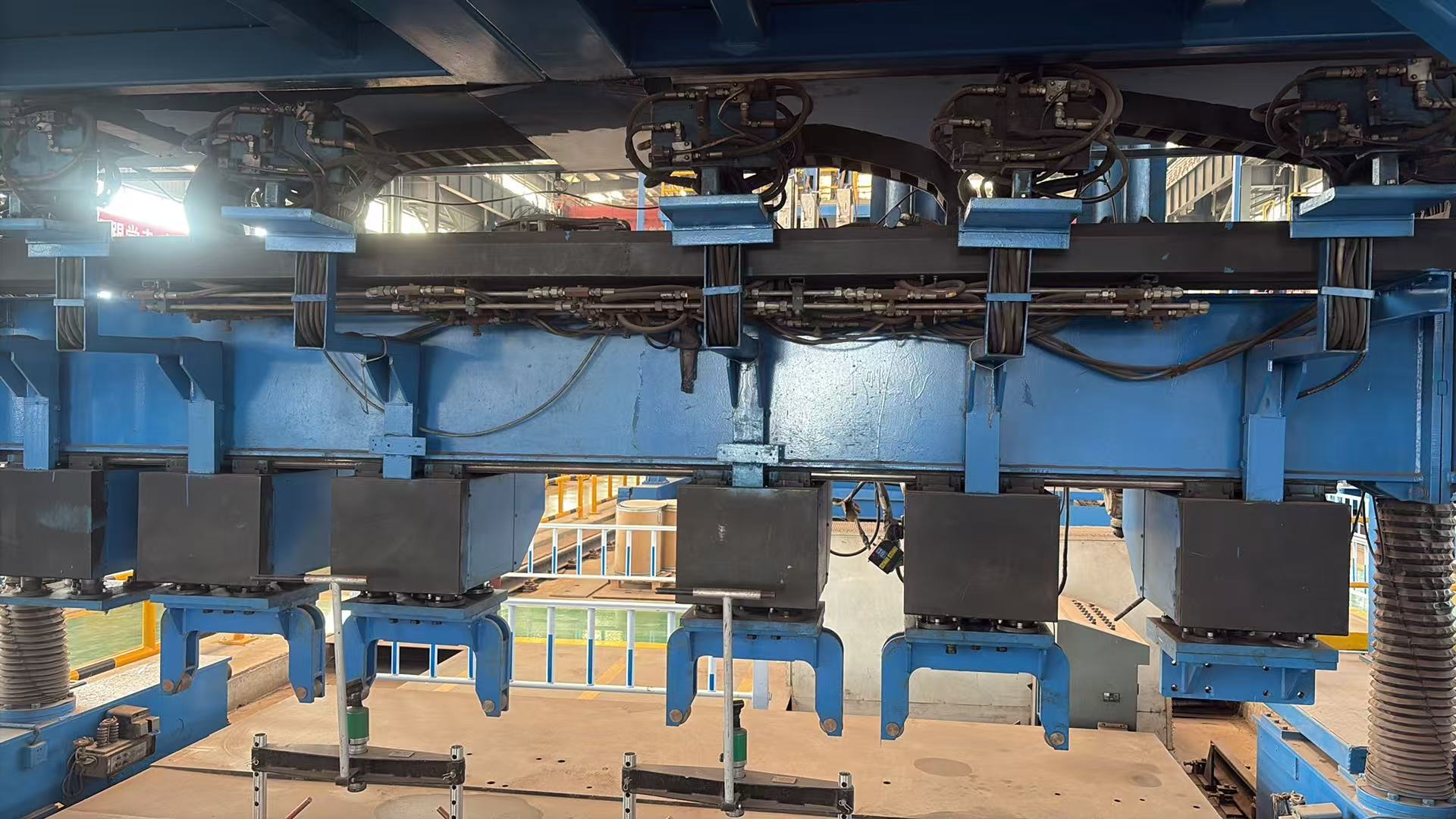

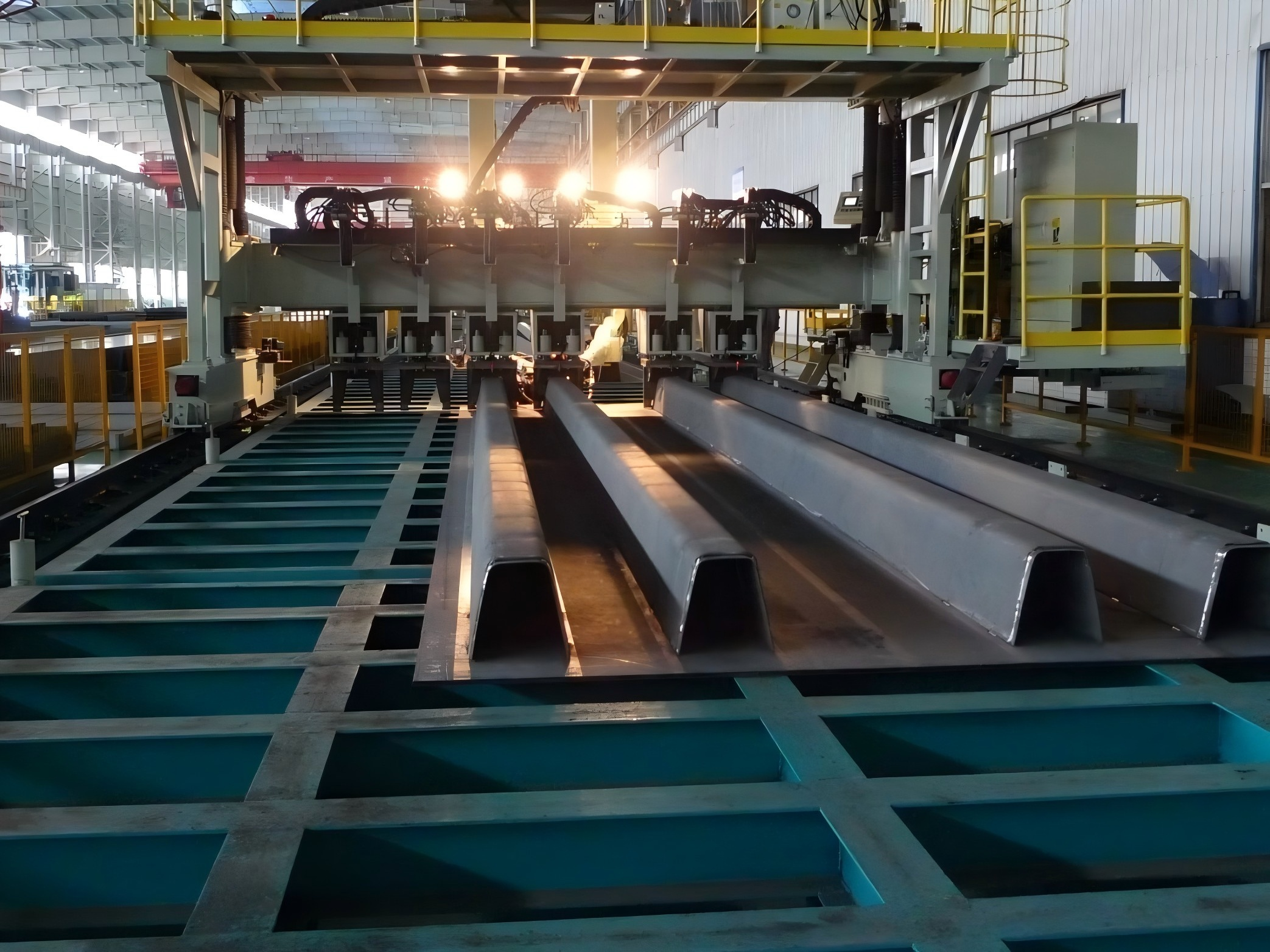

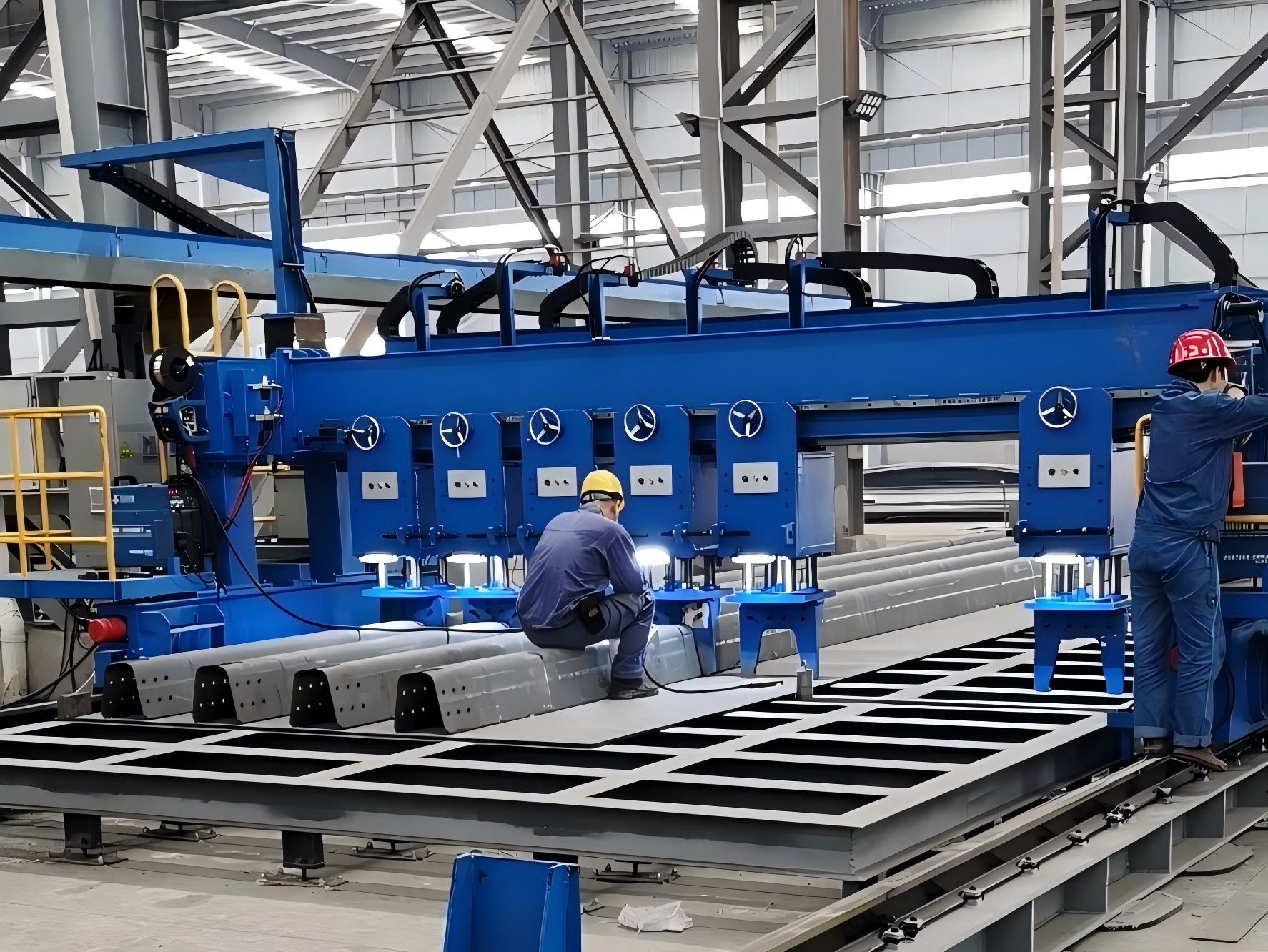

This machine is mainly used to press the U-rib firmly onto the base plate, forcing the U-rib to align with the assembly line of the base plate, eliminating the gap at the contact point between the U-rib and the base plate, and performing manual positioning and spot welding at the joint of 6 U-ribs and the base plate.

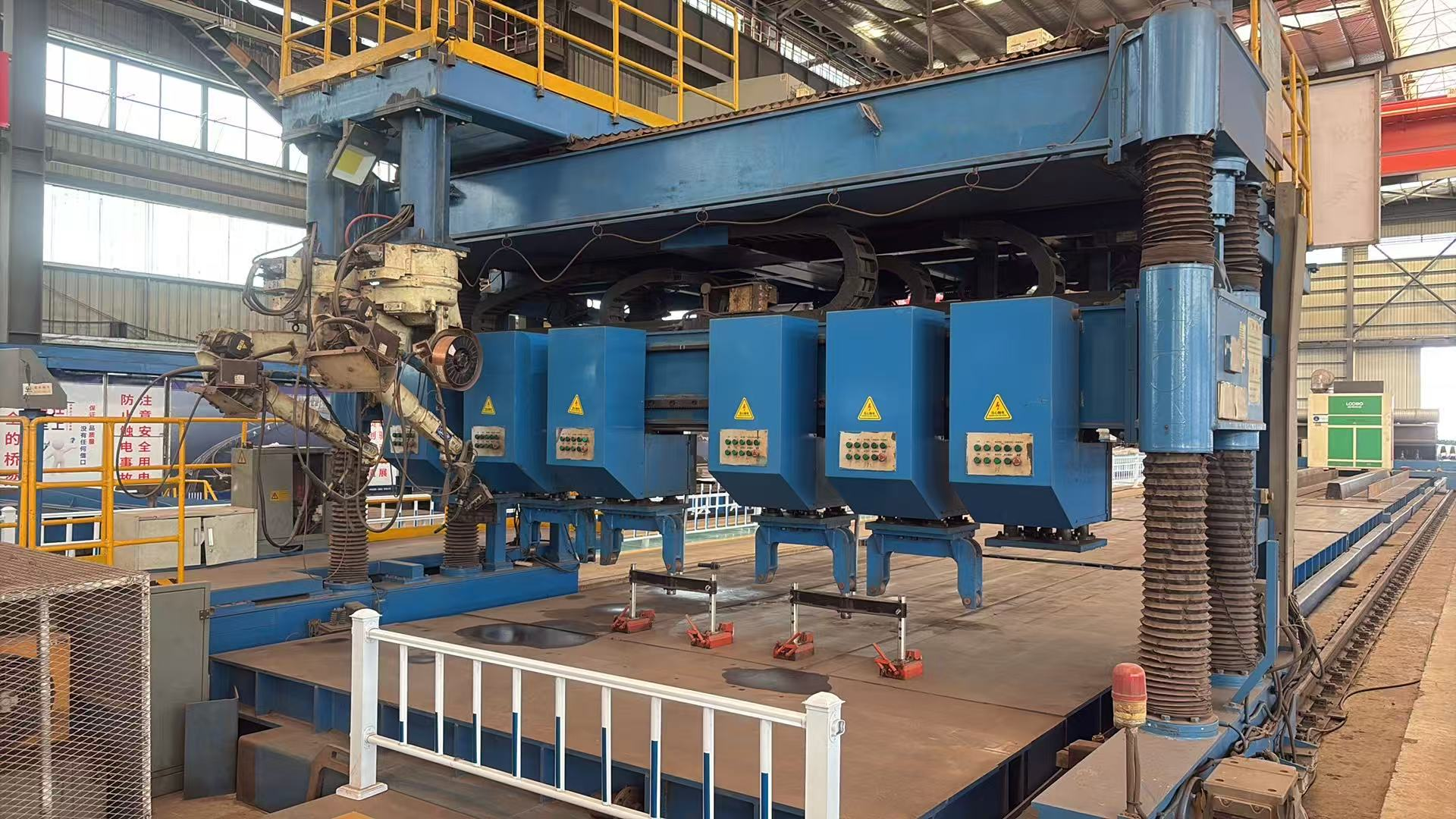

This machine is composed of a walking frame, a walking track, an overall U-rib pressing module, a hydraulic system, a manual welding system, etc.
2.Technical parameter for U Rib assembly machine:
3.Characters for U Rib assembly machine:
3.1 Scope range:
1) Main support frame; including walking body, frame body, crossbeam, U-rib clamping module, track system, etc.
2) Hydraulic system: including hydraulic station, pipelines, hydraulic cylinders, etc.
3) Gas protection welding system: including welding power supply, wire feeder and welding gun, etc.
4) Energy transmission: including drag chain, cable lines, control lines, etc.
5) Electrical control system: including control box, sub-control box, etc.
3.2Main Configurations
3.3By User preparation(including trial operation use)
4.U Rib unit assembling platform(Its with U Rib assembly machine)
Model:ULD-4500
