1.Introduction for Profile bender:

1.1 Product Application of Profile Bending Machine: The profile bending machine is a relatively advanced profile forming equipment in the 21st century, and is widely used in the manufacturing of various circular flanges in industries such as automobiles, elevators, petroleum, chemical engineering, steel structures, mechanical manufacturing, and other sectors.

1.2 Features of Profile Bending Machine: The profile bending machine can complete the pre-bending, coiling and rounding processes of profiles with one feeding operation; the structure of the profile bending machine is advanced and has comprehensive functions. It can be placed vertically or horizontally according to the user's usage situation.

1.3 Working Principle of Profile Bending Machine: The profile bending machine is a straight-line adjustable profile bending machine. The two side rollers of the machine are the main drive rollers, and the three working rollers can also be the main drive rollers. The upper roller position is fixed, and the lower roller clamps the workpiece upward to prevent the cross-section from deforming. The two side rollers perform linear up-and-down movement corresponding to the upper roller, which is hydraulically controlled, with digital displacement display, which is conducive to controlling the profile forming process. There are CNC idler rollers and distortion correction devices on both sides, which are beneficial for ensuring the bending quality of asymmetric cross-section profiles and forming double-curved surface workpieces.

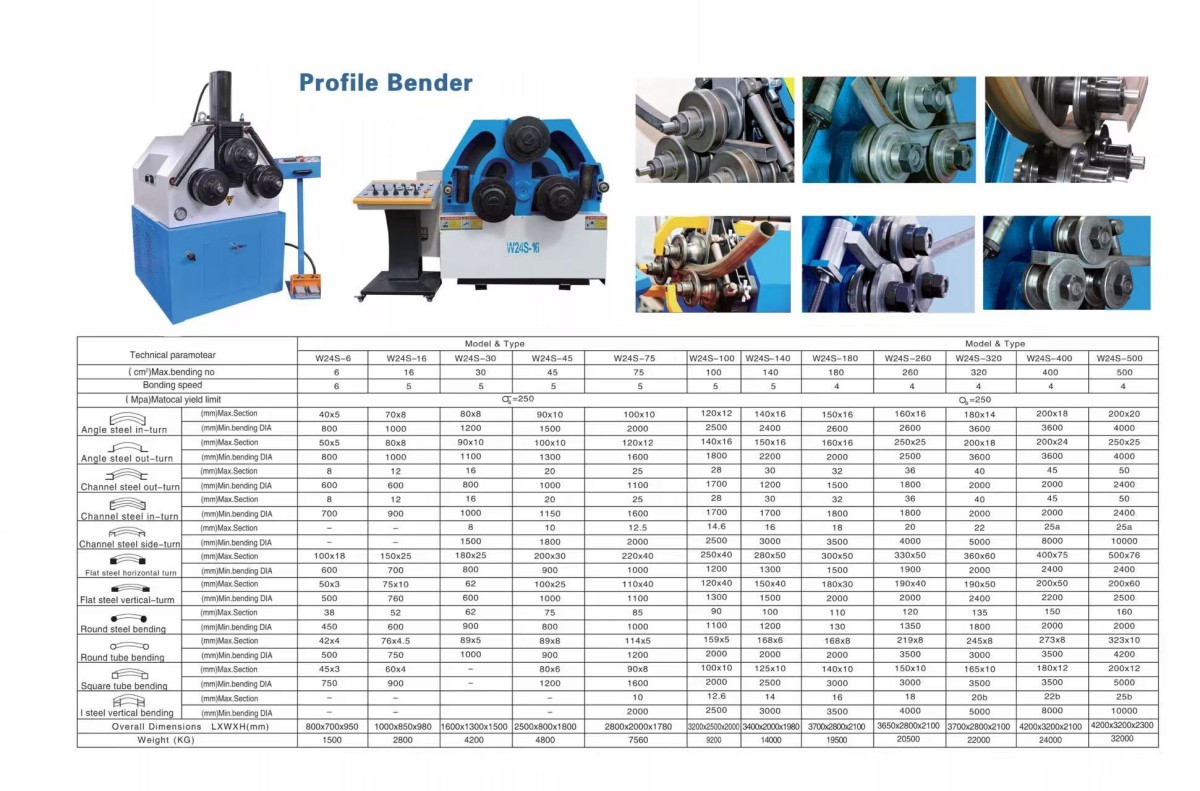

2.Technical parameter for Profile bender

3.Characteristics for Profile bender

3.1 Rolls are hardened & made from high quality steel .

3.2 Drive shafts are hardened and ground with double taper roller bearing support  .

3.3 Machine can be set up in horizontal or vertical working position .

3.4 Hydraulic lateral angle guide rolls ,Double pinch hydraulic forming rolls .

3.5 Dual adjustable lateral guides Rolls are driven via 3 separate hydraulic motor Lower rolls hydraulic moveable up and down .

3.6 Perfectly complete pre-bending,rolled-up,roll calibrate .

3.7 Three rollers are powered .Working principle: two down rollers as main driving roller,Triple geared drive,displacement liquid-crystal display with accuracy+_0.1mm
