NC hydraulic pipe bending machine
1.Introduction for NC hydraulic pipe bending machine:
Bending machines can generally be classified into CNC bending machines, hydraulic bending machines, etc. They are mainly used for pipeline laying and construction in fields such as power engineering, public railway construction, boilers, bridges, ships, furniture, decoration, etc. They have the advantages of multiple functions, reasonable structure, and simple operation. This machine not only has the function of bending pipes but also can use the oil cylinder as a hydraulic jack. Compared with CNC bending equipment, it has the advantages of low price and convenient use, and occupies a dominant position in the domestic bending machine market.
Bending machines can generally be classified into CNC bending machines, hydraulic bending machines, etc. They are mainly used for pipeline laying and construction in fields such as power engineering, public railway construction, boilers, bridges, ships, furniture, decoration, etc. They have the advantages of multiple functions, reasonable structure, and simple operation. This machine not only has the function of bending pipes but also can use the oil cylinder as a hydraulic jack. Compared with CNC bending equipment, it has the advantages of low price and convenient use, and occupies a dominant position in the domestic bending machine market.
Product Parameters
1.Introduction for NC hydraulic pipe bending machine:
Bending machines can generally be classified into CNC bending machines, hydraulic bending machines, etc. They are mainly used for pipeline laying and construction in fields such as power engineering, public railway construction, boilers, bridges, ships, furniture, decoration, etc. They have the advantages of multiple functions, reasonable structure, and simple operation. This machine not only has the function of bending pipes but also can use the oil cylinder as a hydraulic jack. Compared with CNC bending equipment, it has the advantages of low price and convenient use, and occupies a dominant position in the domestic bending machine market.

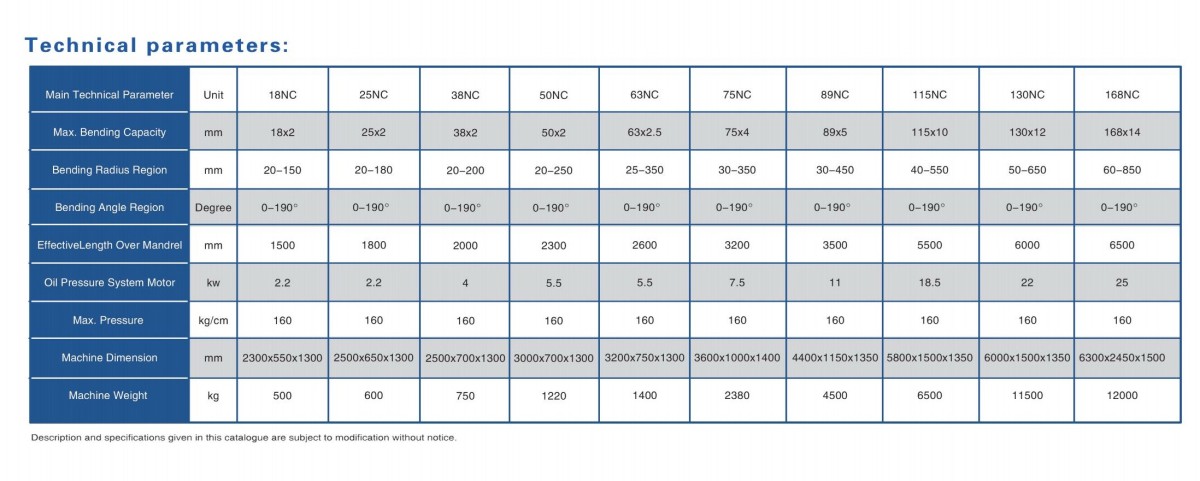

2.Technical parameter for NC hydraulic pipe bending machine
3.Characteristics for NC hydraulic pipe bending machine
3.1 PLC control, easy to set programs and operate
3.2 Slowly returning of mandrel, make good shape and appearance of the angle
3.3 Rotating is controlled by servo-motor, more precise
3.4 Memory 100 sets records with each record setting 20 auto rotating and bending angles
3.5 Moveable control platform with touch-screen, more convenient .Mistakes self-checking on the screen, help to solve problem immediately
3.6 7Key parts use the imported brands
3.8 Hydraulic power, processing more smoothly
3.9 Die material use high quality steel, hardness high and long life use, the hardness not below HRC50; dies including bending die,clamping die, crease resistant die, guide die,Wiper Die(Optional), Ball Mandrel(Optional).
