1.Introduction for Dish end forming machine:

XBJ-3000 Shaped Head Automatic Edge bending Machine is a special equipment for our special vehicle production line which has been developed by our company on the basis of many years of head-spinning technology and equipment debugging technology and attracting foreign advanced technology.

The special-shaped head automatic bending machine adopts advanced PLC programmable control technology, micro-electronic technology, with beautiful appearance of rotating edge, reliable quality,high production efficiency, simple and convenient operation, easy to grasp the characteristics of equipment and so on. The product not only improves efficiency but also ensures a stable head spin quality during mass production and improves the operating environment. This product has obtained national patents. Appropriate objects: regular and automatic rotation of the sealing head of regular tanks, which is especially suitable for enterprises with complete processing of various tanks.

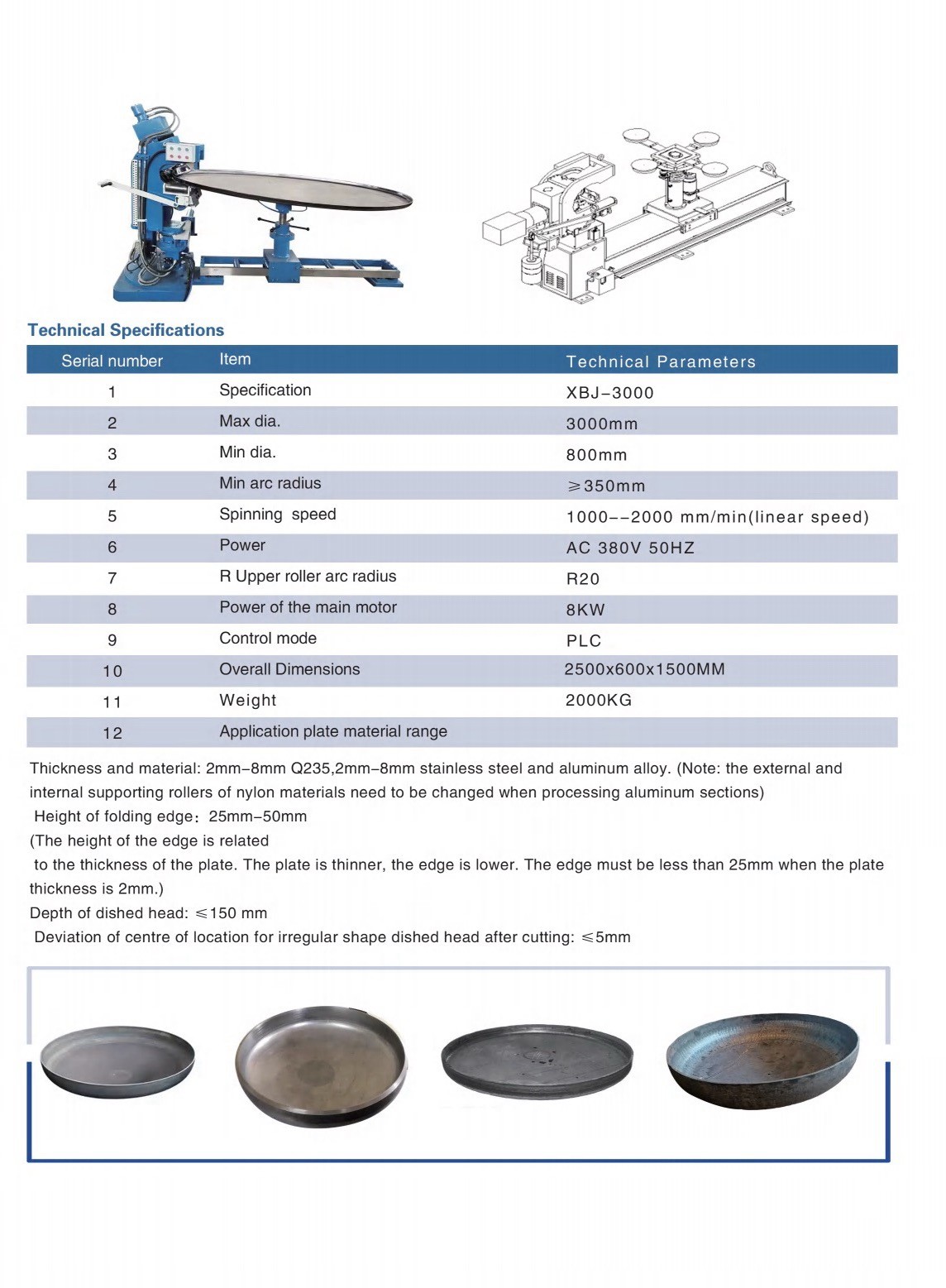

2.Technical parameter for Dish end forming machine

3.Characteristics for Dish end forming machine

3.1 Rolls are hardened & made from high quality steel .

3.2 Drive shafts are hardened and ground with double taper roller bearing support  .

3.3 Machine can be set up in horizontal or vertical working position .

3.4 Hydraulic lateral angle guide rolls ,Double pinch hydraulic forming rolls .

3.5 Dual adjustable lateral guides Rolls are driven via 3 separate hydraulic motor Lower rolls hydraulic moveable up and down .

3.6 Perfectly complete pre-bending,rolled-up,roll calibrate .

3.7 Three rollers are powered .Working principle: two down rollers as main driving roller,Triple geared drive,displacement liquid-crystal display with accuracy+_0.1mm
