1.Introduction for welding manipulator:

1.1. Welding manipulator With 1000-7000mm effective lifting stroke and retracting stroke.

1.2. Welding column boom machine Boom end capacity up to 300kg. With 100x100mm cross slides.

1.3. Pipe welding manipulator Automatic welding for tank/pipe/vessel straight seam and circle seam.

1.4. Tank welding manipulator Seam tracker and Monitor to make sure the welding result better.

1.5. Automatic Welding manipulator Flux recovery machine is also can be optional.

1.6. Welding manipulator Voltage 220V 380V 480V 600V 50/60Hz are all can be customized

1.7. Welding column boom machine Remote hand control box is also standard configuration

1.8. Pipe welding manipulator Working with welding rotator and welding positioner etc

1.9. Tank welding manipulator Welding source can be Tig/Mig/Saw welding,even plasma welding source

1.10. Automatic Welding manipulator Outside seam welding,inside seam welding & circle seam welding.

2.Technical parameter for welding manipulator

3.Characters for welding manipulator:

3.1. Welding manipulator Structure:Fixed ,Fixed with Rotation and Movable with Rotation.

3.2. Welding column boom machine Equipment is cold-blended and go through annealing treatment.

3.3. Pipe welding manipulator There is anti-failing device to ensure the safety of boom lifting.

3.4.Tank welding manipulator Boom retracting adopts VFD,being stable and reliable.

3.5. Automatic Welding manipulator X-Y slide is fixed on one end of boom, controlled by remote panel.

3.6. Welding manipulator Column rotation controlled by manual operation or electric drive.

3.7. Welding column boom machine Optional: Trolley,seam tracking,monitor system,flux recovery machine etc

3.8. Pipe welding manipulator Famous spare parts using to ensure good quality and long time using.

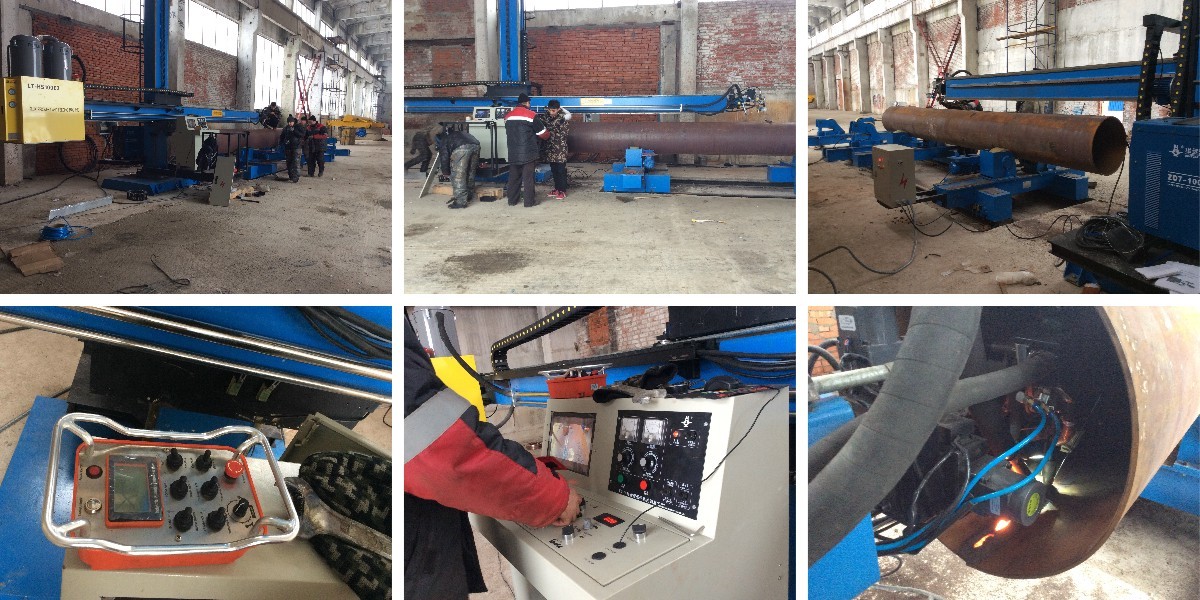

4.Projects for Welding manipulator
