1.Introduction for CNC hydraulic pipe bending machine:

Bending machines can generally be classified into CNC bending machines, hydraulic bending machines, etc. They are mainly used for pipeline laying and construction in fields such as power engineering, public railway construction, boilers, bridges, ships, furniture, decoration, etc. They have the advantages of multiple functions, reasonable structure, and simple operation. This machine not only has the function of bending pipes but also can use the oil cylinder as a hydraulic jack. Compared with CNC bending equipment, it has the advantages of low price and convenient use, and occupies a dominant position in the domestic bending machine market.

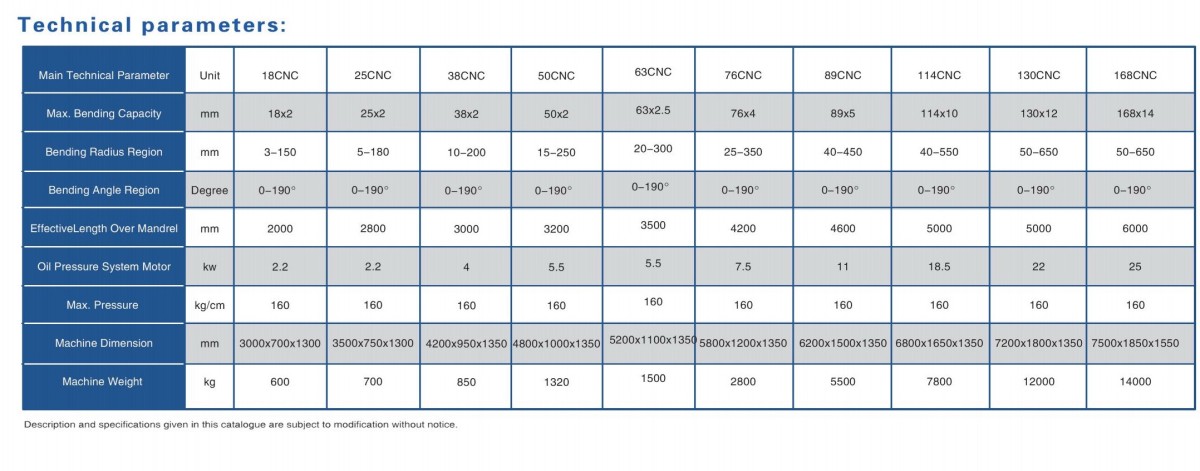

2.Technical parameter for CNC hydraulic pipe bending machine

3.Characteristics for CNC hydraulic pipe bending machine

3.1 Bend-arm (C-axis) by hydraulic. Clamp die by hydraulic, Pressure die by hydraulic.

3.2 Carriage (Y-axis) by servo motor. Collet (B-axis): rotation by servo motor, grip by hydraulic.

3.3 Anticipated mandrel retraction unit. Standing pedestal, serves emergency stop and remote control

3.4 Fan-cooling system. Diagnosis intermediately.

3.5 Central Automatic lubricant system.

3.6 Foot pedal for safe start.

3.7 It is fully automatic pipe bending machine, with PLC control system, two servo for rotary, feeding

3.8 Touch screen panel display English, have different bending degree prefabricate, dialogue operation,

can choose manual,semi-automatic and full automatic operation manual,

portable pedal switch with start and emergency stop function. Multi axes working simultaneously.

3.9 Bending pipe -Automatic. Rotating pipe - Automatic. Feeding pipe - Automatic.

3.10 One key back up of programs for USB or disk storage or through INTERNET. Management and

storage of bend data and tools is done in standard text files on the hard disk of

the control PLC. In case of requirement it is also possible to integrate the PLC into bending machine，Therefore an Helmet adapter is included. The number of tools and products is practically unlimited，Product and tool files can easily be edited (also on a separate PLC) and printed out

3.11 Security code for the protection the data setting and selected operation features.

3.12 To access to the history bending setting data to the facilitate study of malfunction with one set of tooling

3.13 All the parts of hydraulic system, control system, driver system and display system are imported from famous brand, with high accuracy, high efficient, suitable for mass production.

3.14 CNC fully auto, have cubical space bending equipment, loading the whole bending process is automatic

3.15 The machine is convenient operation, stable performance and high safety factor. The machine is the ideal choice for the pipe processing.
