1.Introduction for Space frame welding machine:

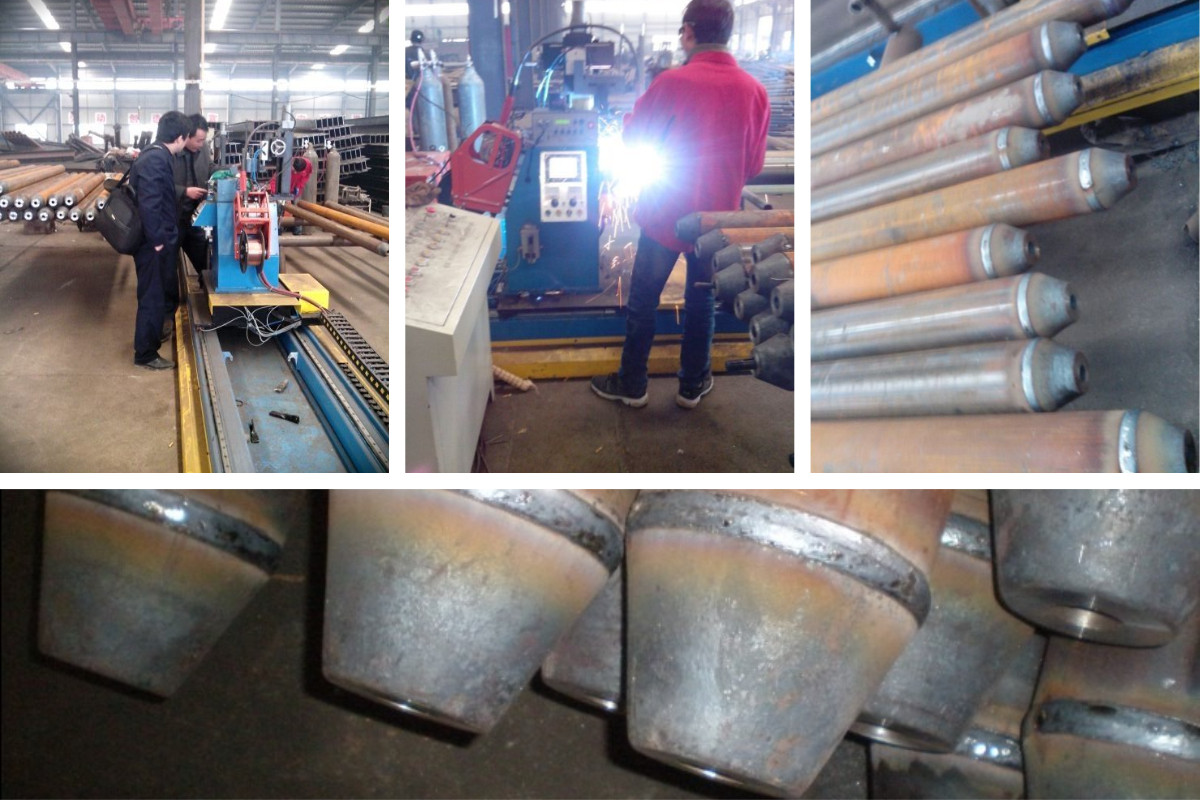

Body of space frame welding machine is assembled by steel metal,structure parts are anneal processed,quite stable and durable;Automatic space frame truss welding machine realizes welding gun swing welding,welding gun is adjusted by manual;Main and vice withstanding device is by hydraulic,Space frame welding machine will loose after welding finishes,lifting of work piece adopts lead screw by manual.Automatic space frame welding machine Length of body is 7.2 meters,and width is 900mm,max welding gap could be 3-5cm,length of work piece should be under 5.5 meters,and diameter of work piece is 42mm-180mm
2.Technical parameter for Space frame welding machine
3.Characters for Space frame welding machine:
Characters and performance of product,diameter range of welding,standard configuration,working process,main material and components of product
Space frame welding machine can make both of two sides of work piece welded at the same time,Space frame making machine improves efficiency,and flaw detection is standard of China.Automatic Space frame making machine is very easy to operate,anyone who has no experience can learn how to operate in short period.Space frame truss welding machine adopts imported PLC program,Automatic space frame truss welding machine has characters of high precision and low repair fee.Length of body is 7.2 meters,we also can design according to request of client.Diameter of work piece of rod should be 42mm-180mm
We will also two CO2 welding machines for this standard equipment(Brand can be chosen by client,also we choose by ourselves.Space frame welding machine has characters of easy operation and highly efficient welding ,for example,we use 20 seconds for work piece that its diameter is 48mm, a dish of welding wire produce 1000 numbers of workpice that its diameter is 48mm,usually a worker can produce over 600-800 numbers of Ф48mm work piece a day ,and Automatic space frame welding machine can produce over 400-600 numbers of Ф76mm work piece with one and a half of mixed gas.
Our company guaranteed that all welding quality can reach 96% of government standard
Space frame welding machine It realizes welding gun swing welding,welding gun is adjusted by manual;Main and vice withstanding device is by hydraulic ,Space frame making machine will loose after welding finishes,lifting of work piece adopts lead screw by manual.Length of body is 7.2 meters,and width is 900mm,max welding gap could be 3-5cm,it realizes welding gun tracking ,and diameter of rod work piece is 42mm-180mm
