Electro-hydraulic synchronize cnc press brakes
— —
Navigation
Send Us A Message
Electro-hydraulic synchronize cnc press brakes
Product Parameters
1.Introduction for Electro-hydraulic synchronize cnc press brakes:
The bending machine is a device capable of bending thin plates. Its structure mainly consists of a base, a worktable, and a clamping plate. The worktable is placed on the base, and it is composed of a base frame and a pressing plate. The base frame is connected to the clamping plate through a hinge. The base frame is composed of a housing, a coil, and a cover plate. The coil is placed in the depression of the housing, and the top of the depression is covered by the cover plate. When in use, the wire is used to energize the coil, and after energization, it generates a gravitational force on the pressing plate, thereby achieving the clamping of the thin plate between the pressing plate and the base frame. Due to the use of electromagnetic force clamping, the pressing plate can be made to meet various requirements for the workpiece, and it can also process workpieces with side walls. The operation is also very simple.
The hydraulic bending machine includes a base, a worktable, and a clamping plate. The worktable is placed on the base, and it is composed of a base frame and a pressing plate. The base frame is connected to the clamping plate through a hinge. The base frame is composed of a housing, a coil, and a cover plate. The coil is placed in the depression of the housing, and the top of the depression is covered by the cover plate.
When in use, the wire is used to energize the coil, and after energization, it generates a gravitational force on the pressing plate, thereby achieving the clamping of the thin plate between the pressing plate and the base frame. Due to the use of electromagnetic force clamping, the pressing plate can be made to meet various requirements for the workpiece, and it can also process workpieces with side walls. The bending machine can meet the needs of various workpieces by replacing the bending machine mold.

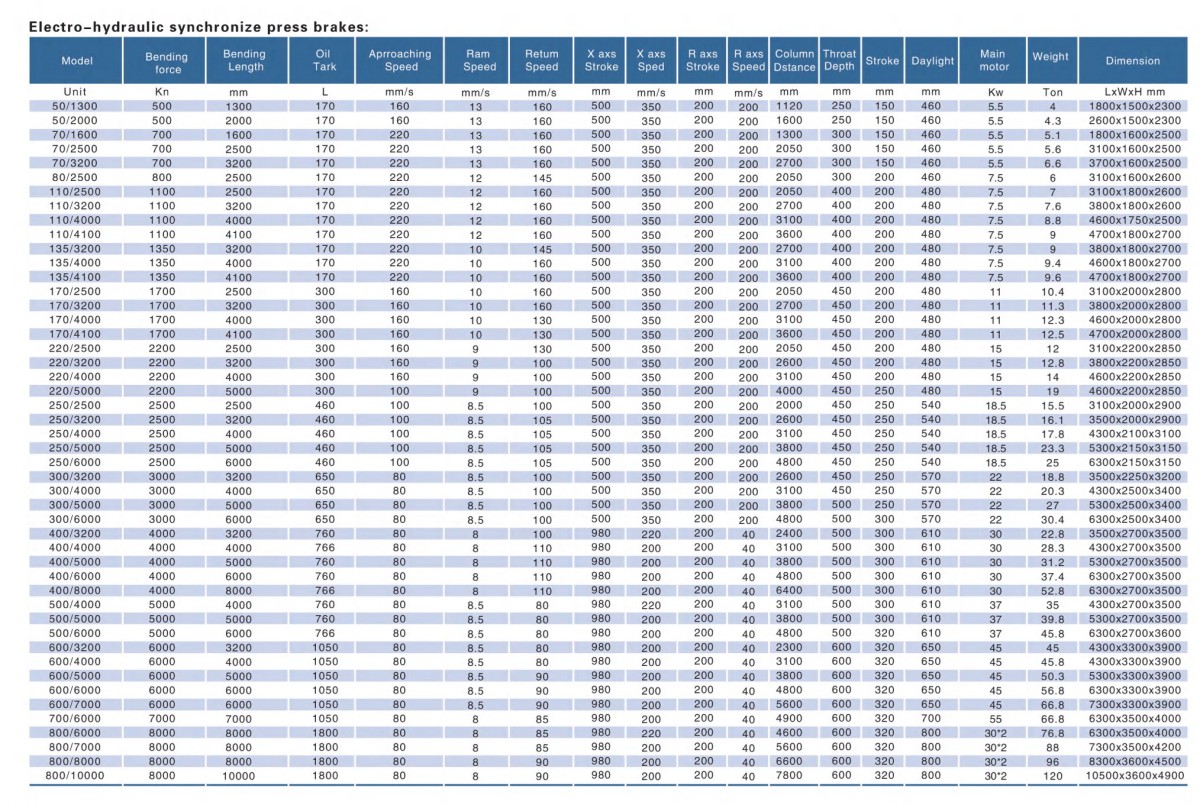

2.Technical parameter for Electro-hydraulic synchronize cnc press brakes
3.Characters for Electro-hydraulic synchronize cnc press brakes:
3.1 The structure is made of full steel welding, which has sufficient strength and rigidity;
3.2 Hydraulic transmission is used, and the oil cylinders at both ends of the machine are placed on the slider and directly drive the sliding operation;
3.3 The slider synchronization mechanism adopts torsion shaft forced synchronization;
3.4 A mechanical stop block structure is adopted, which is stable and reliable;
3.5 The slider stroke can be adjusted flexibly automatically and manually, and the counter shows the result;
3.6 The wedge-type deflection compensation mechanism is used to ensure high bending accuracy.
