1.Introduction for CNC Face milling machine:

Face milling machine is used for h beam ,box beam ,cross beam etc metal structure face milling process.H beam face milling machine can mill max face beam 2500*2000.H beam end face milling machine is very easy to operate ,simple structure and fast to adjust.Box beam end face milling machine is necessary equipment for Beam or column structure manufacturer

Beam end face milling machine is consists of Milling head,elevating column,working table,bed,feeding system,electrical control system,railway protection unit,tool etc

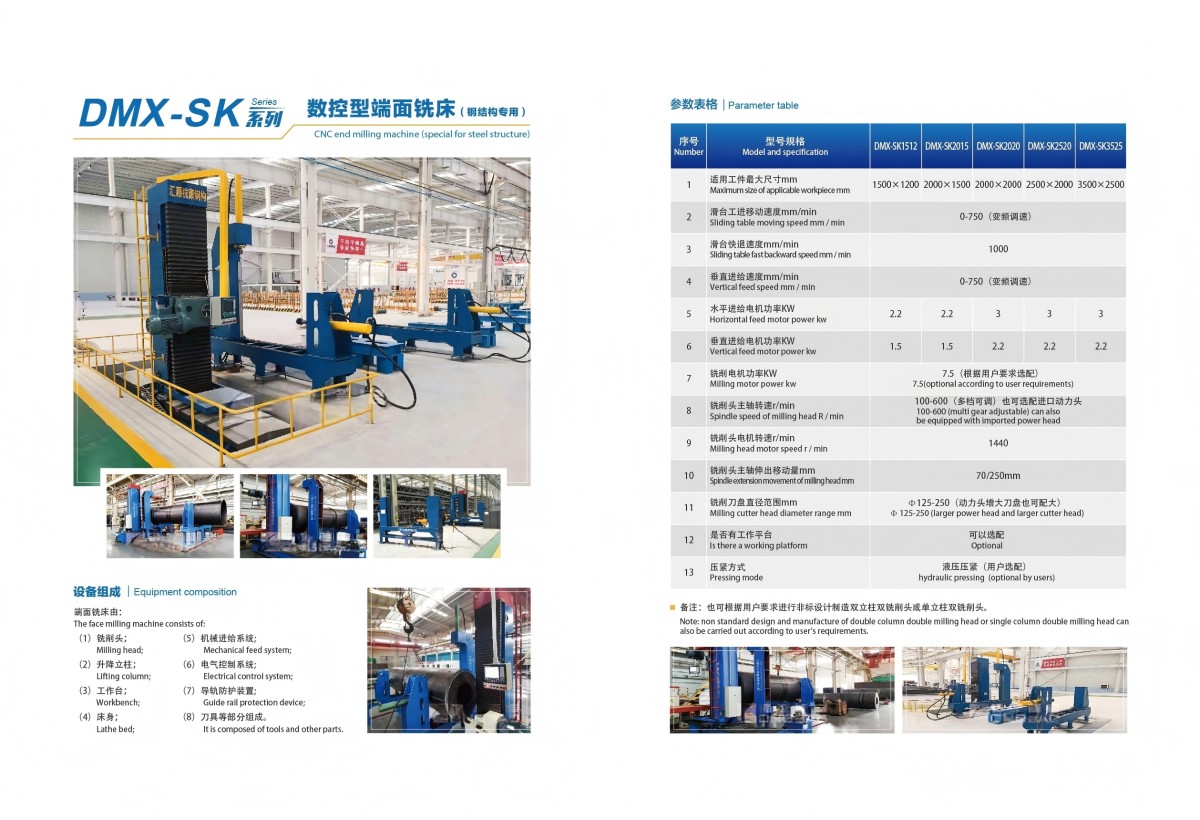

2.Technical parameter for CNC Face milling machine

3.Characters for CNC Face milling machine:

3.1 High-precision processing: The numerical control system can precisely control the tool path and feed rate, ensuring the geometric accuracy such as the flatness and perpendicularity of the workpiece end face. The perpendicularity between the spindle axis and the feed direction directly affects the processing quality. The numerical control system can effectively compensate for mechanical errors.

3.2 High efficiency and high metal removal rate: Utilizing end milling cutters for cutting, the main cutting edge and the secondary cutting edge work simultaneously, completing the cutting process while also providing smoothing effects. The surface quality is excellent. Combined with stepless variable frequency speed control and servo drive, high-speed cutting can be achieved.

3.3 High degree of automation. Based on numerical control systems (such as Guangzhou Numerical Control, HuaChuan, etc.), it supports programmed operations. It can store multiple sets of processing parameters and quickly switch between different processing procedures for different workpieces, making it suitable for mass production.

3.4 The structure is highly rigid and adaptable. Key components such as the bed and columns are mostly made of high-strength cast iron (such as C250 Hanas cast iron). The guide rails are quenched to ensure long-term accuracy. It can process various parts including H-shaped steel, box-type columns, molds, flanges, etc.

3.5 Multi-functional integration: Not only can it perform end face milling, but it can also expand its functions through accessories to achieve tasks such as drilling, boring, tapping, chamfering, T-slot processing, etc. Some models support multi-axis linkage (such as seven-axis).

3.6 The operation is convenient and highly secure. It is equipped with electronic handwheels, safety interlocks, automatic lubrication, and guard covers for the guide rails, which reduces labor intensity and enhances operational safety.
