1.Introduction for Edge milling machine:

XBJ series Edge milling machine ,instead of digging ,becomes a new and advanced high efficient milling equipment,Our company developed this machine upon many researches from other companies.Automatic Edge milling machine is widely used in pressure vessel,boiler,ship manufacture,electric,chemical area and machinery.Its used to process straight flange,bevel edge and U type groove before welding,Comparing to other similar products,these are advantages below:

1.1. Main frame is welded ,after welding,use high temperature decrease process to avoid transformation

1.2. Guide rail combines suspension and seater,Its more stable than normal suspension ,Steel plate milling machine will reduce vibration

1.3. Feeding device of this machine is driven by motor,it adopts VFD control ,and its speed is 0.13～1.0m/min

1.4. Steel plate edge milling machine adopts standard milling cutter for cutting head

1.5. There is workpiece keep-off device,it makes metal plate position more convenient

1.6. There is special support device at bottom of equipment,its designed for long workpiece.

1.7. Automatic Steel plate edge milling machine adopts slide -touch wire,its more safe and beautiful than normal hanging wire

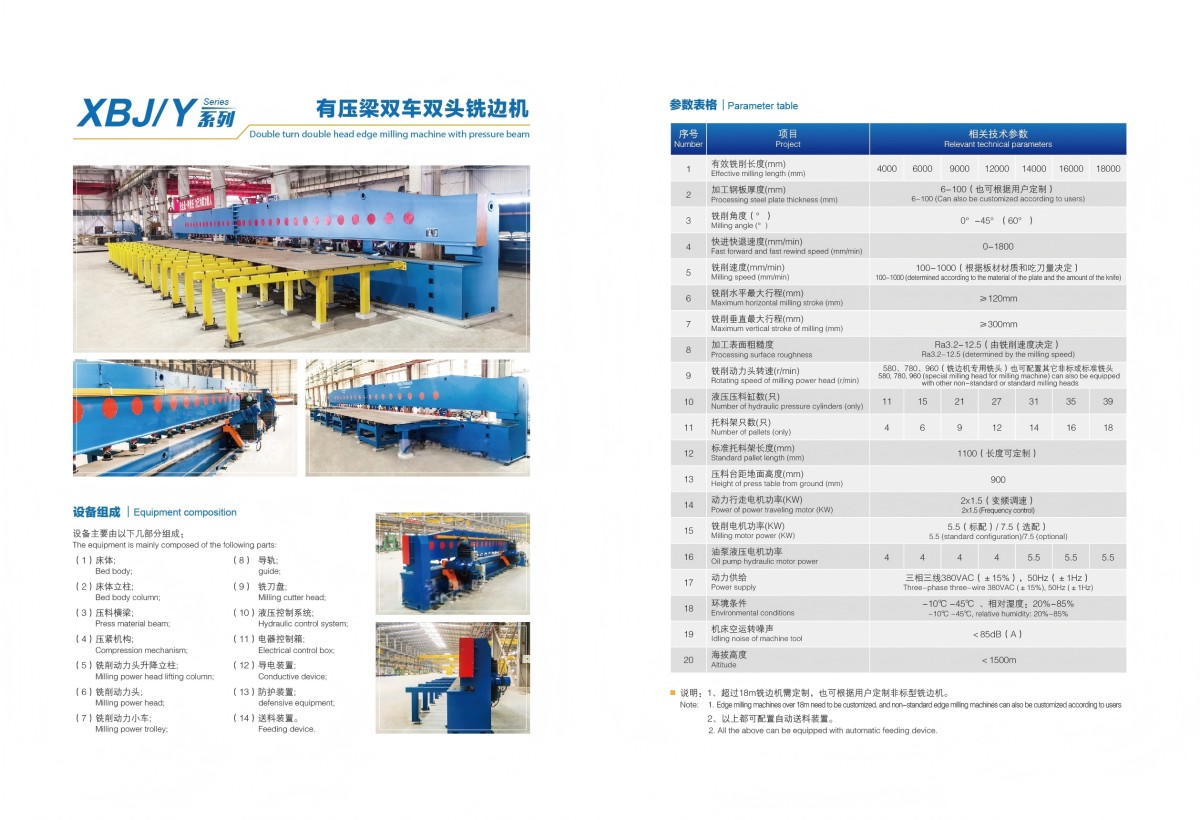

2.Technical parameter for Edge milling machine

3.Characters for Edge milling machine:

3.1 High Efficiency and High Precision: Utilizing the principle of high-speed milling, the processing accuracy can reach the micron level. It can form various bevels such as inclined edges, straight edges, U-shaped, V-shaped, and K-shaped in one operation, without the need for secondary grinding.

3.2 High degree of automation: The automatic walking type and CNC type can achieve automatic clamping, edge detection, feed, and return movement, reducing manual intervention and enhancing production efficiency.

3.3 Strong adaptability: It can process various materials such as carbon steel, stainless steel, and aluminum plates; the thickness range is wide, with the standard model covering 6–80mm, and some heavy-duty models (such as the non-pressure beam type) can reach 6–400mm.

3.4 The adjustable range of the bevel angle is typically from 0° to 90°. Some models support an angle range of 15° to 60° or 30° to 60°.

3.5 Low Energy Consumption and Low Cost: Compared to the edge planer, it has the advantages of lower price, lower energy consumption, higher finish quality, and easier maintenance.

3.6 Advanced Structure: The guide rails are designed for disassembly and are heat-treated to ensure smooth operation; the return system is independent of the feed system, enhancing efficiency; the angle of the cutter head can be adjusted flexibly, and standard and customized cutter heads can be interchanged.
