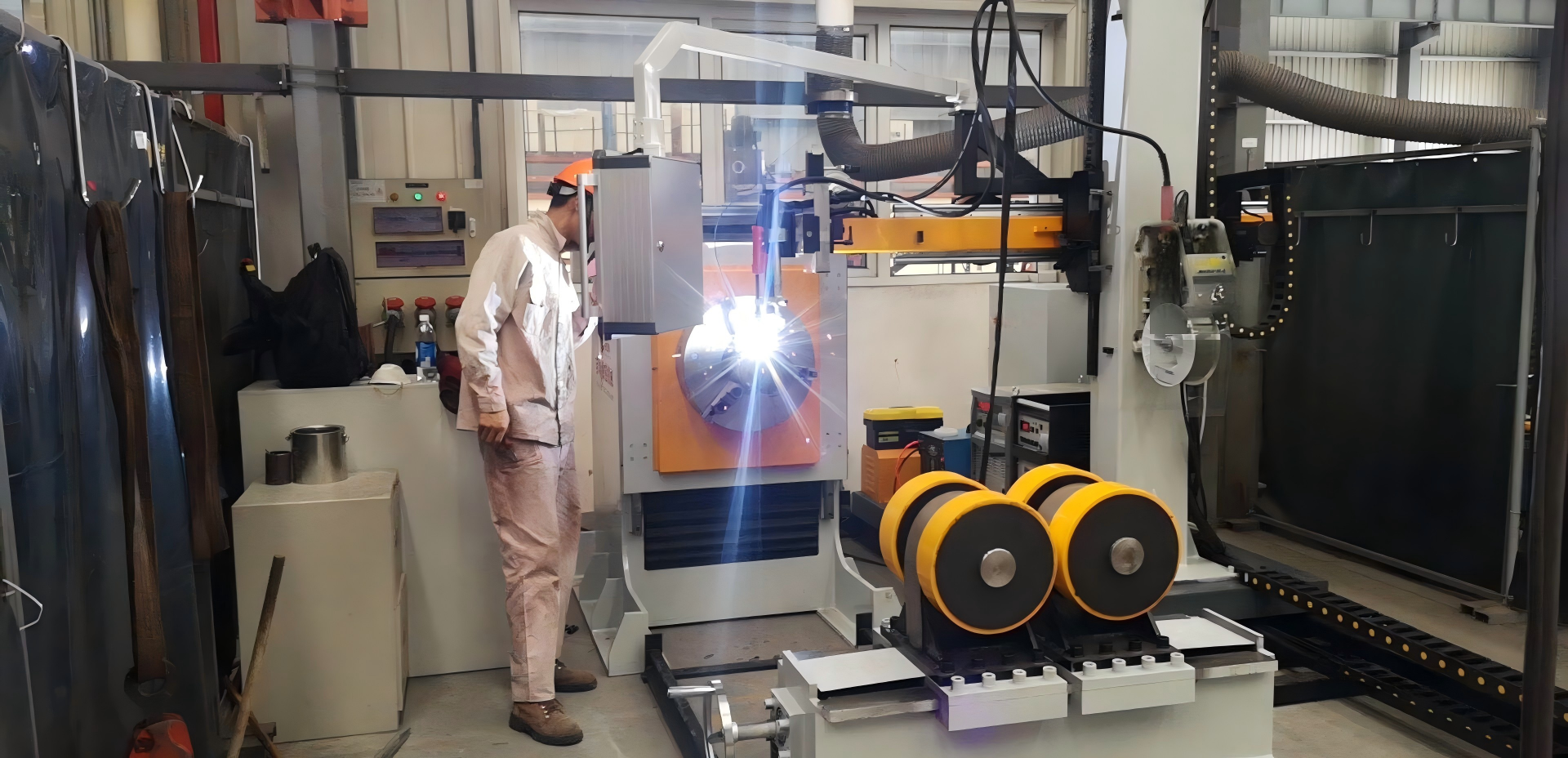

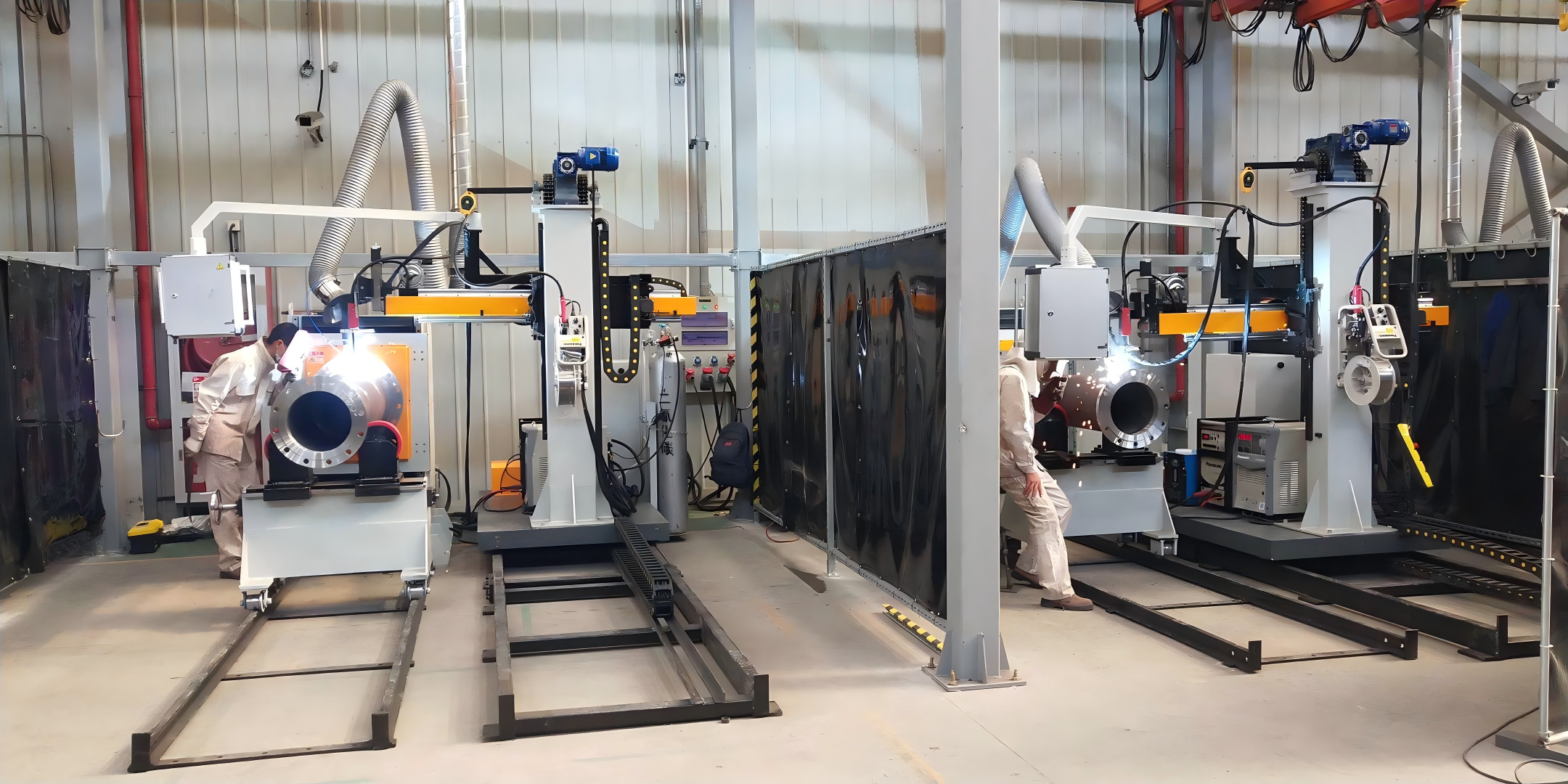

1.Introduction for PPCW16 heavy duty Chuck Pipe Welding Station:

The pipeline processing equipment features superior practicality and reliability. The PPCW series chuck-type automatic pipe welder supports TIG/MAG/SAW welding processes to complete automatic root, fill and cap welding of pipes.

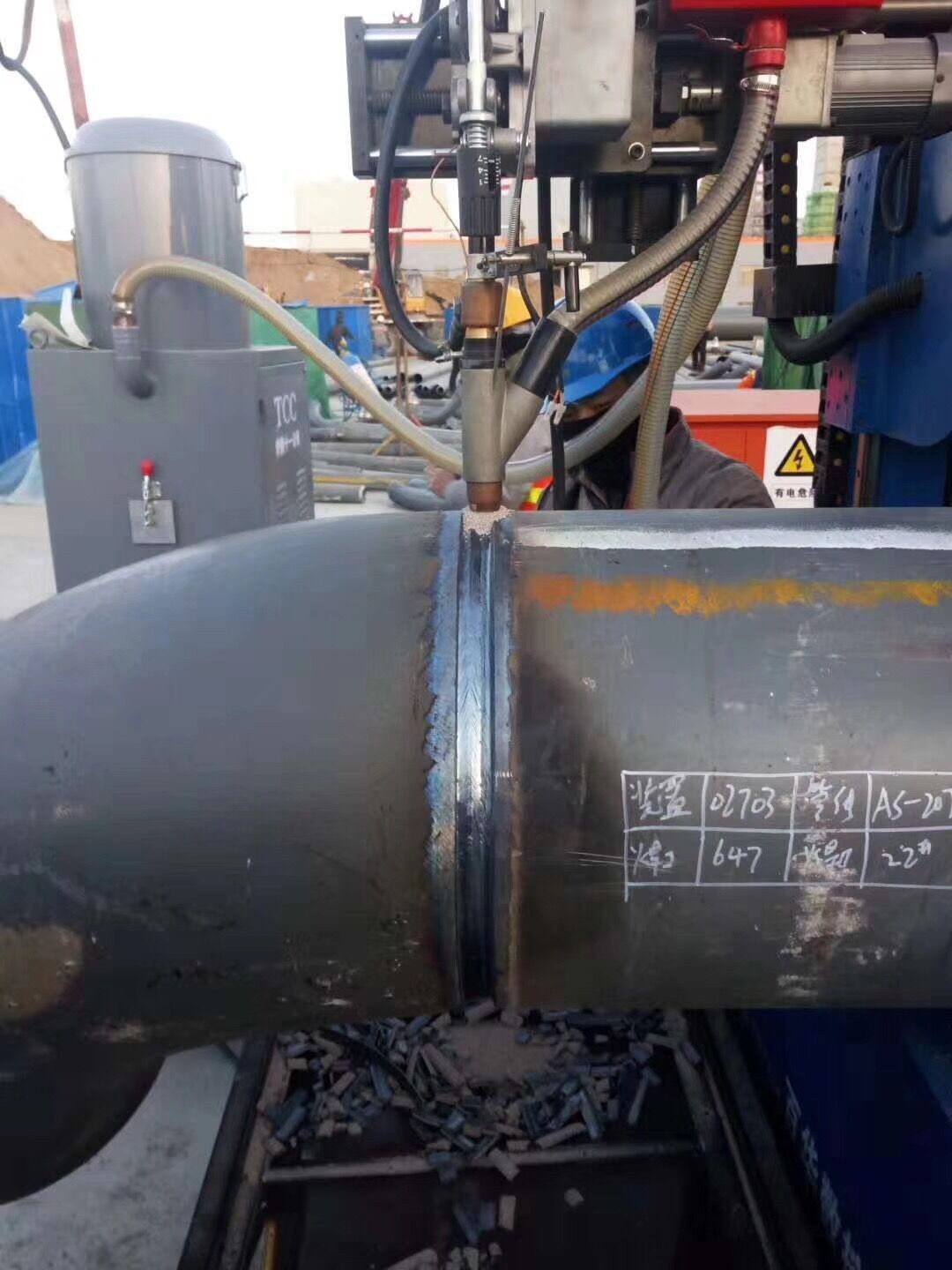

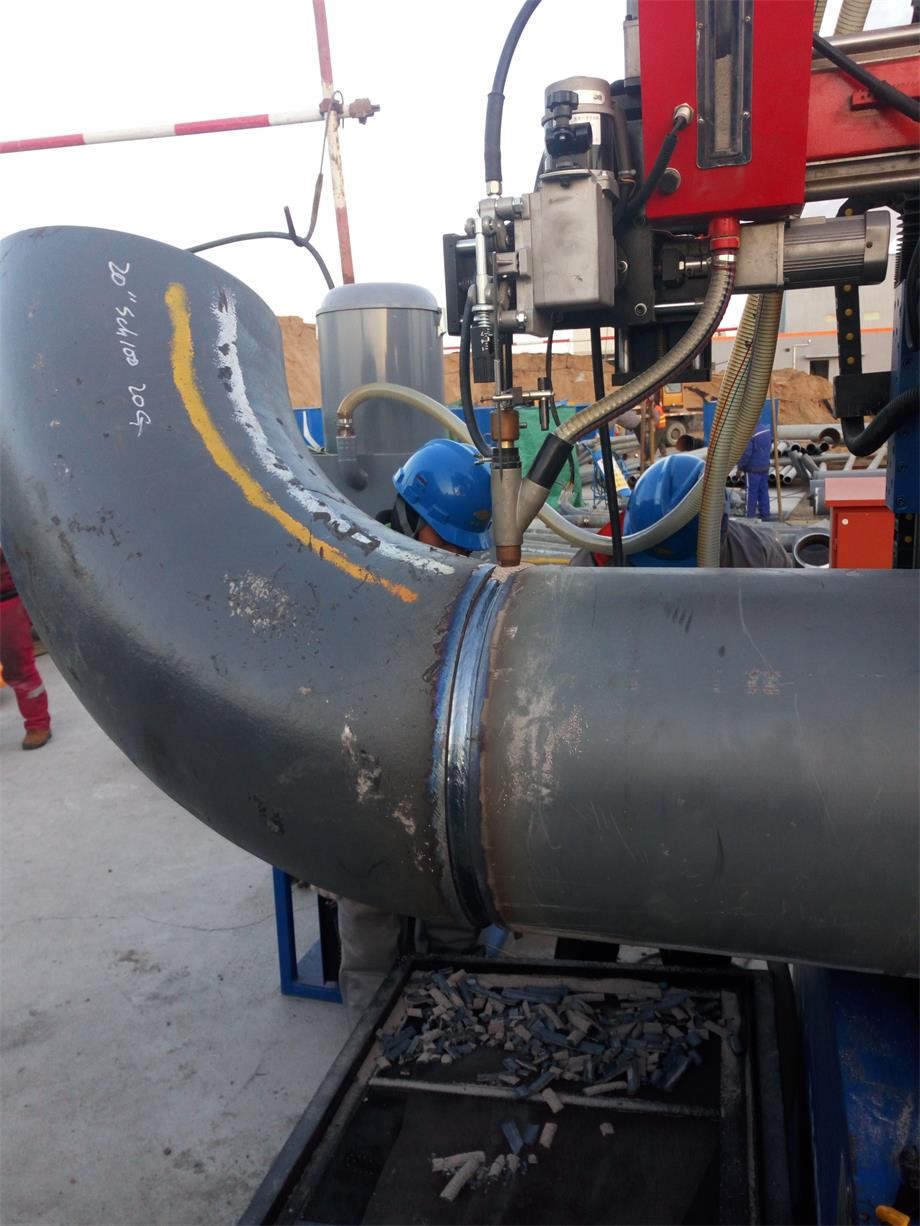

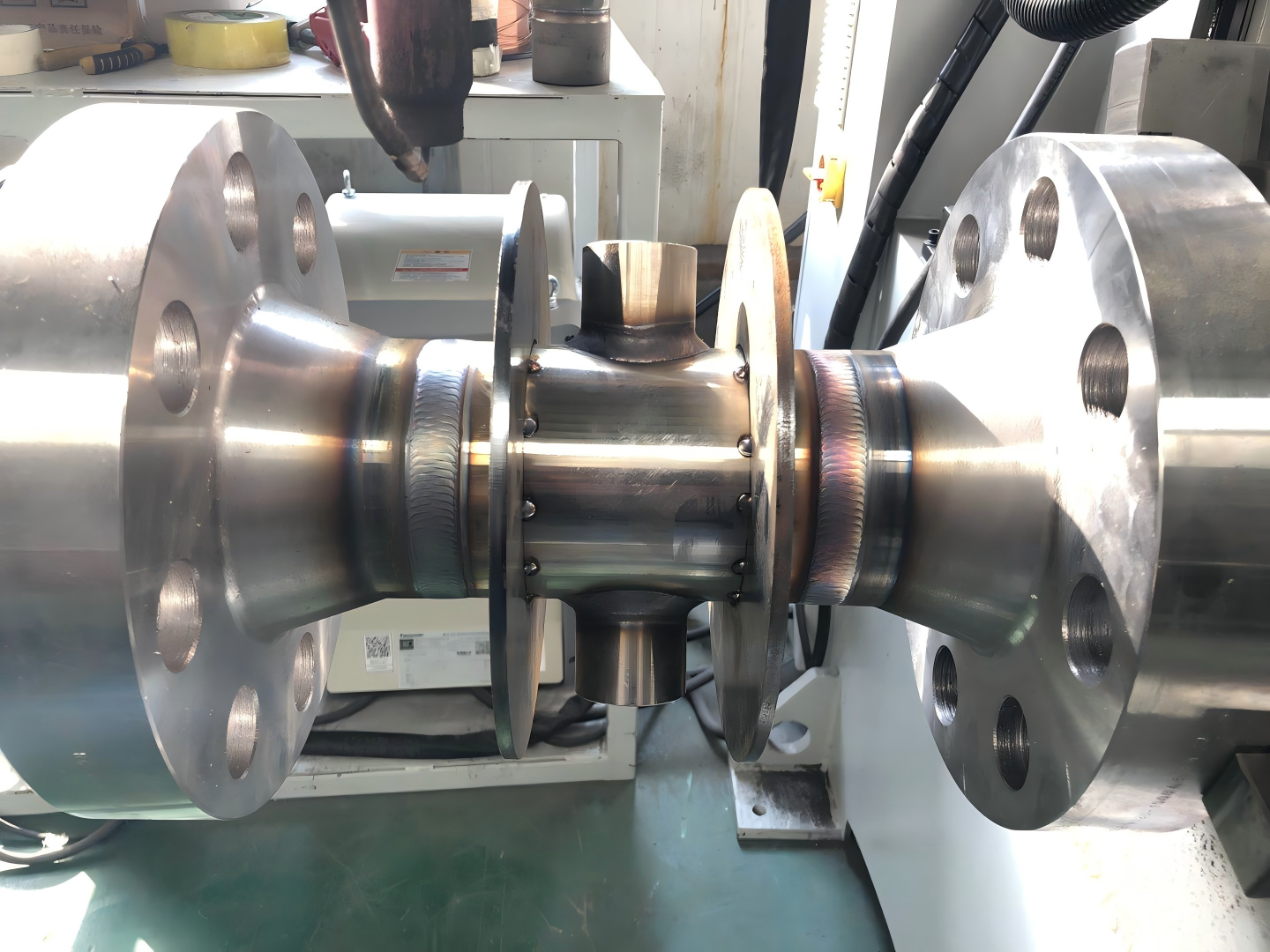

It realizes automated butt welding for pipe-to-pipe, pipe-to-reducing pipe, pipe-to-flange, pipe-to-elbow (excluding equal straight-end elbows) and pipe-to-tee.

2.Technical parameter for PPCW16 heavy duty Chuck Pipe Welding Station

3.Characters for PPCW16 heavy duty Chuck Pipe Welding Station:

3.1 Advanced equipment, simple operation, without any experience, you can master welding skills within 3-5 days through training

3.2 In line with the strict standards of the industry: equipment designed and manufactured in accordance with international CE, APT, ASME, HSE standards, welding processes and control software developed, so that users can avoid standard barriers in international competition;

3.3 The embodiment of ergonomics in the entire equipment design and use: The humanized equipment operation design enables the operator to maintain a relaxed working posture during various operations, effectively avoiding the occurrence of safety accidents. The design fully complies with HSE and other environmental, safety and health standards

3.4 Operability: Those who do not have any welding experience can learn to weld in a short time. The welding program is preset in the PLC numerical control system + handheld control for control and fine-tuning, the operation panel is simple, and the handheld control box control is stepless speed

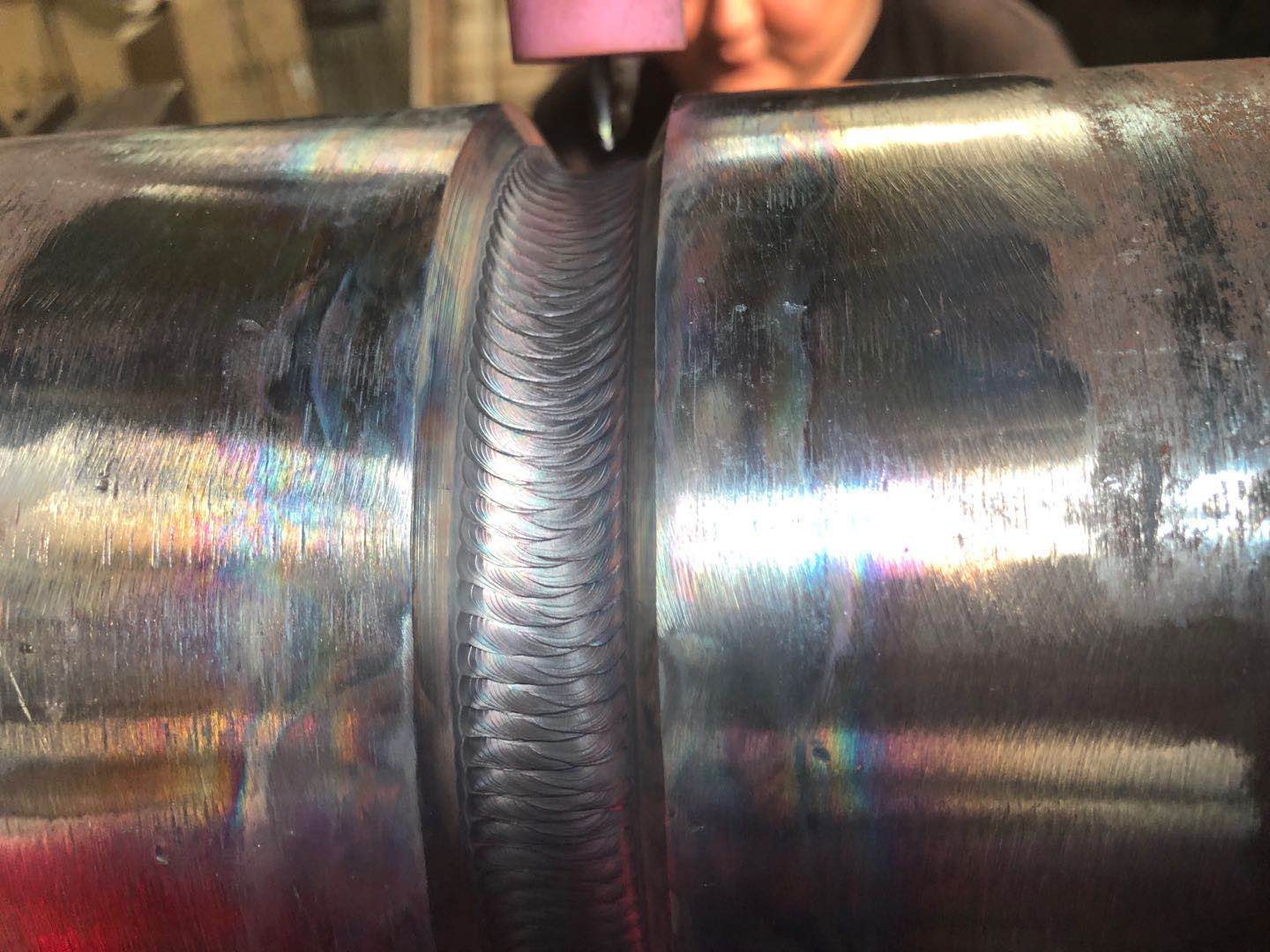

3.5Surface forming: The welding torch is always welded at the best position, which can realize single-sided welding and double-sided forming, the weld seam is beautiful, and the qualified rate is extremely high;

3.6Welding drive system: hoist the assembled workpieces onto the support trolley, and then clamp it through the chuck to drive the pipe to rotate and weld;

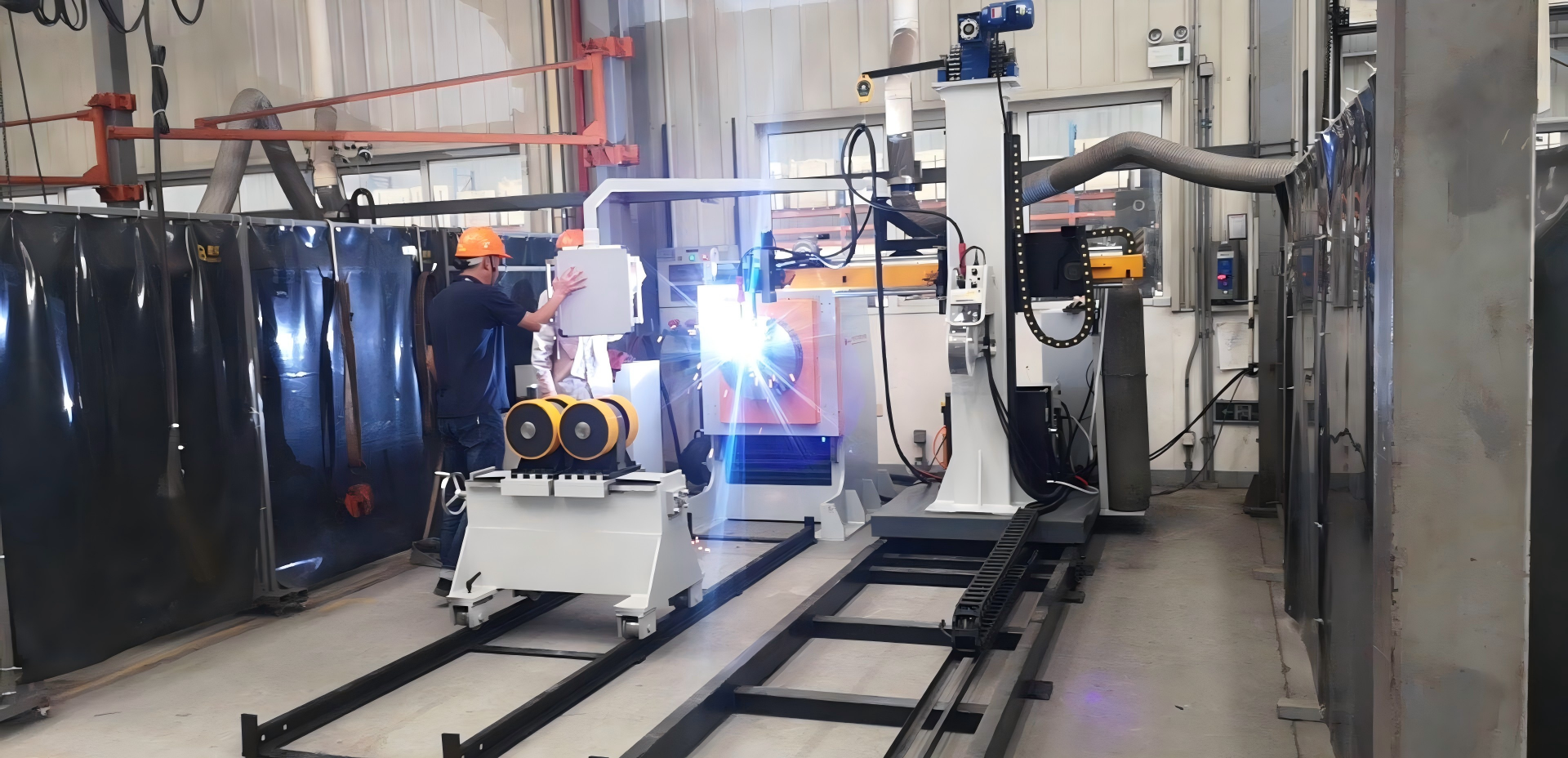

3.7 Welding host: The welding host is a cantilever type, set on a linear guide rail traction, electric walking, can meet the functional needs of one clamping and multi-point welding;

3.8 Welding system: The original imported Lincoln FLEXTEC-650 welding power source is used to meet the high-speed argon arc/gas shielded/submerged arc welding of pipelines;

3.9 Control system: WSP pipeline welding expert control system, PLC + man-machine interface, integrated management and control of various welding process parameters, the operator "quickly learns", shortens the equipment "input-output" cycle

3.10 Welding process: automatic TIG/MAG/SAW three welding processes can be randomly selected according to the requirements; three welding torches can be installed on the gun frame at the same time, and the welding process can be quickly switched, and the welding process parameters can be adjusted. Tune

3.11 Equipment safety: The electrical equipment meets the requirements of CE certification, the insulation safety level/standard H/IP23 each functional action is set to safety limits, and there are reliable safety protection, emergency stop button, grounding and safety devices to prevent misoperation or accidents .
