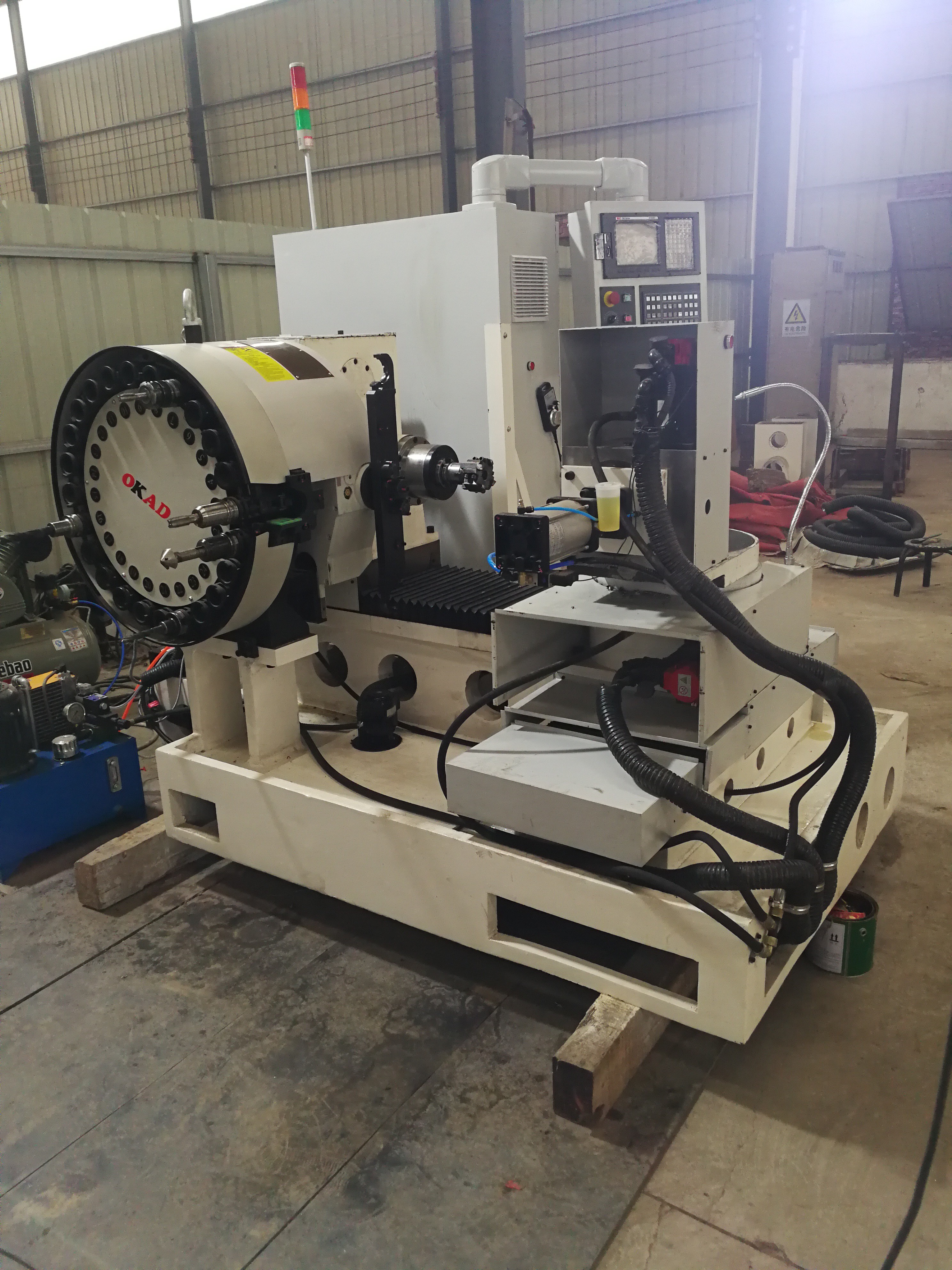

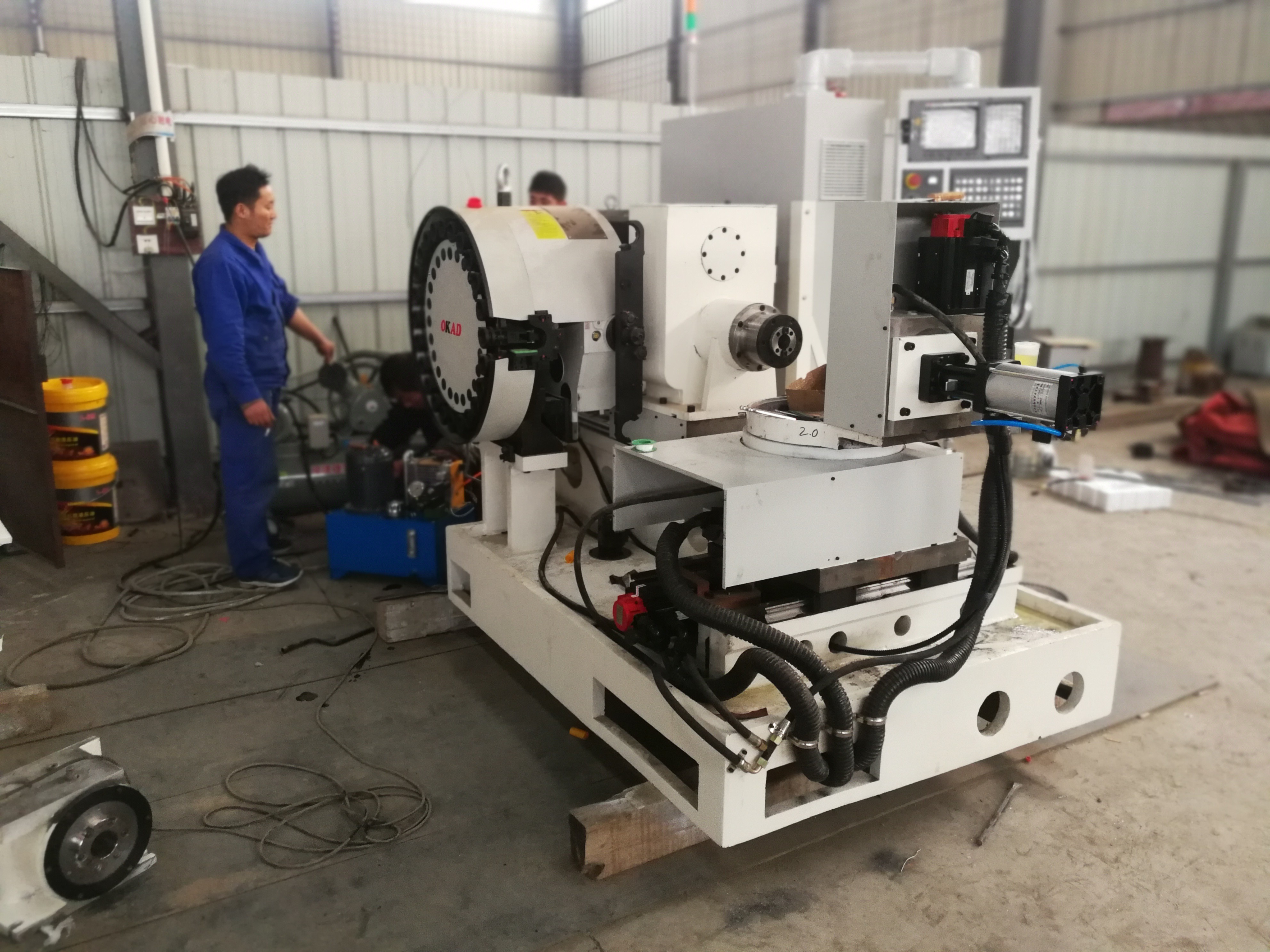

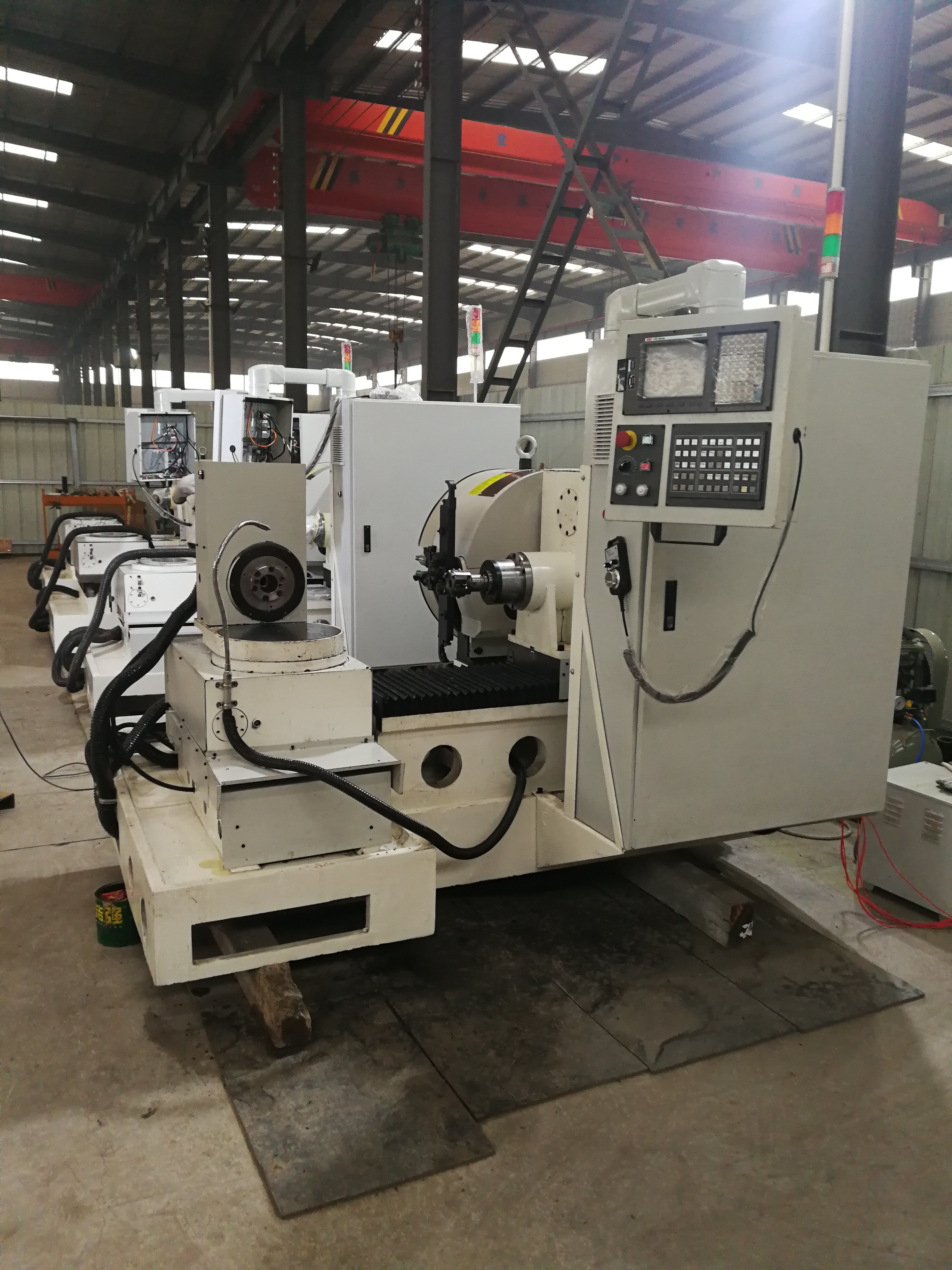

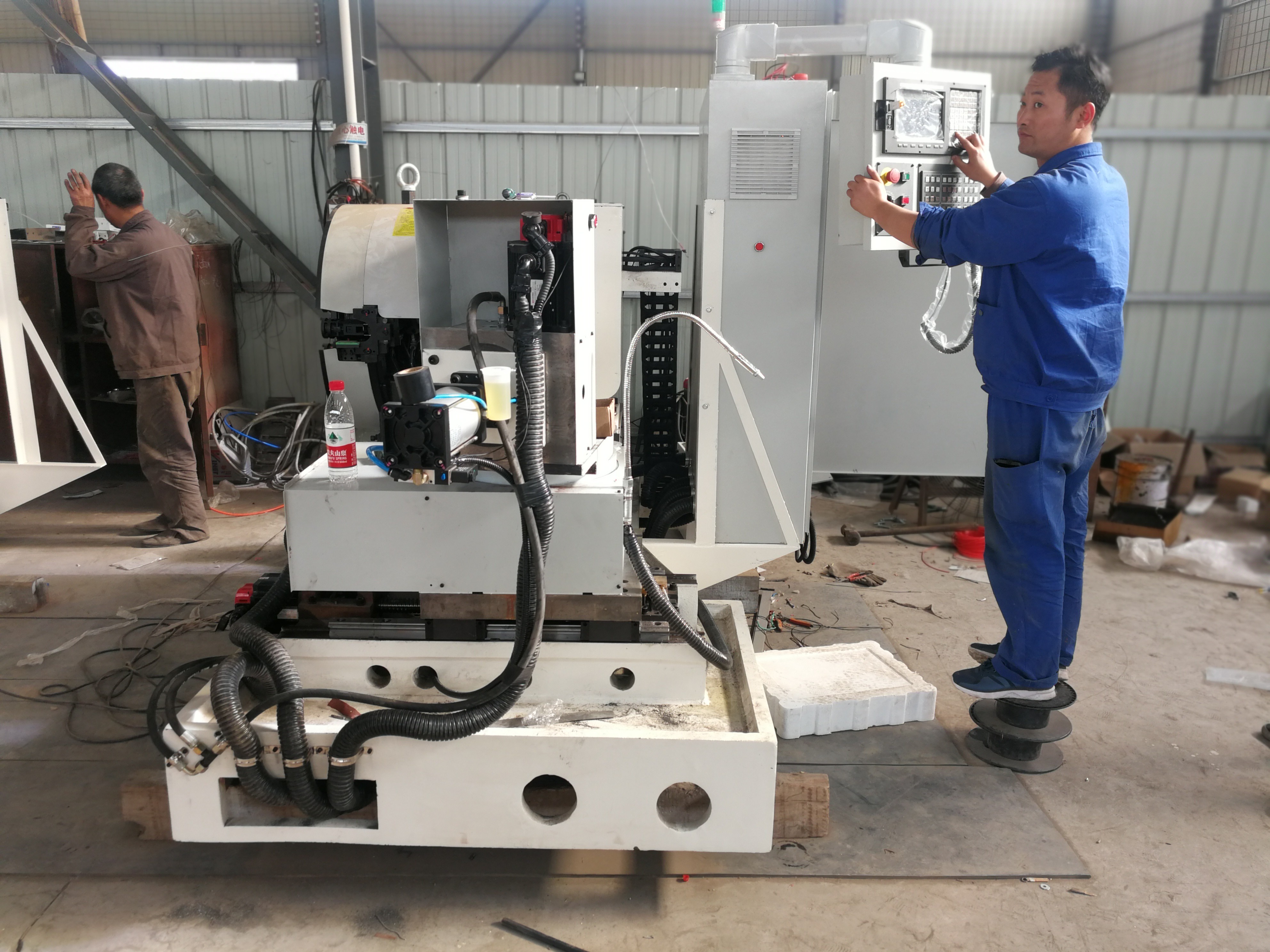

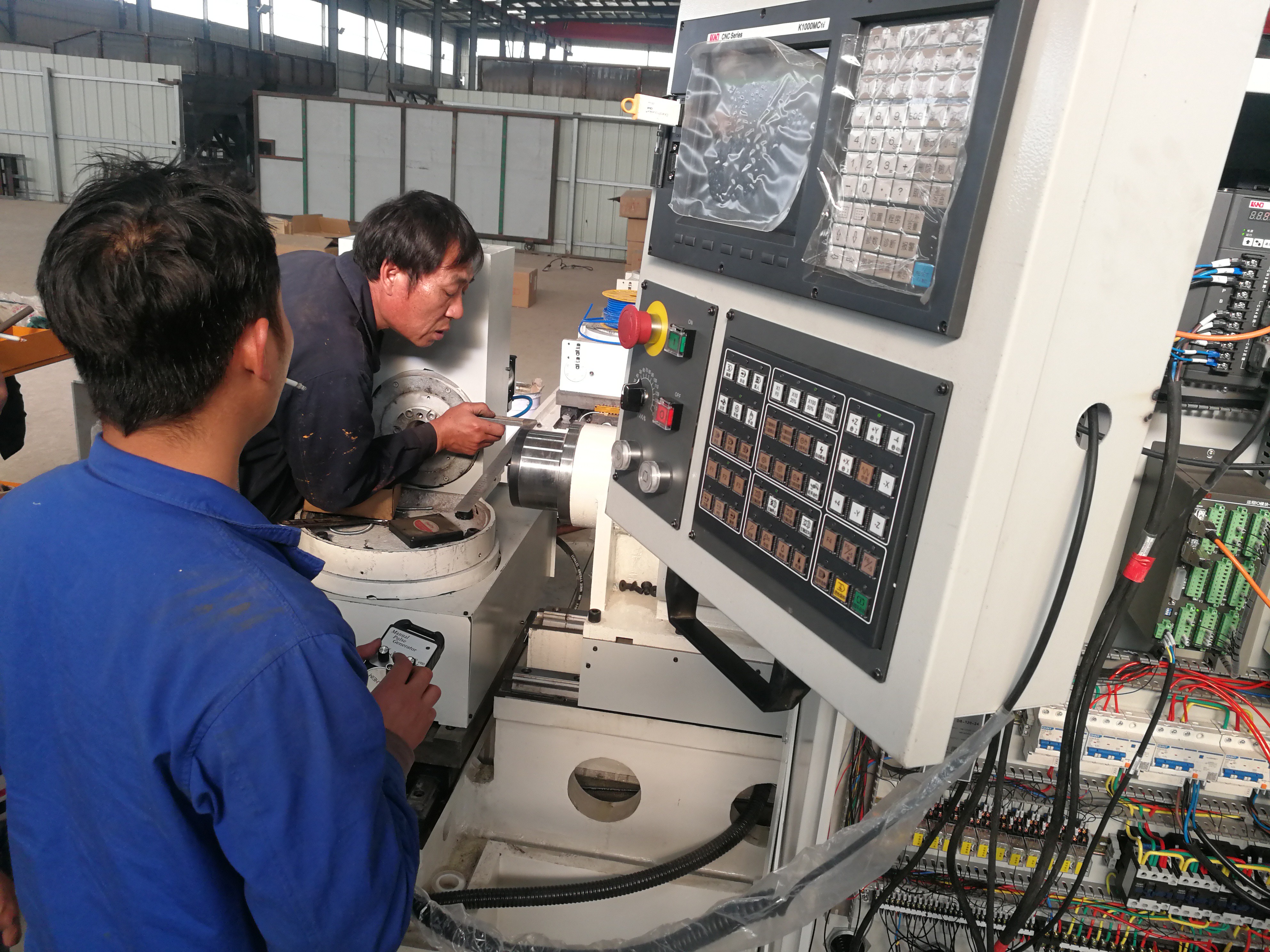

Ball milling and drilling machine

1.Introduction for Ball milling and drilling machine：

The bolt ball CNC machining center is a special equipment specialized in processing all the thread holes on the bolt ball. It adopts advanced CNC machining technology and high-performance computer-aided programming software. After a clamping, the digital control system controls the machine tool to automatically select and replace the tool according to different processes and automatically change the spindle speed of the machine tool. The feed and the tool relative to the workpiece trajectory and other auxiliary functions, in turn to complete the workpiece different angles, different aperture and other multi-process processing, processing center due to the process of concentrated and automatic tool change, reduce the workpiece clamping times and the turnover time between the process, but also reduce the manual labor intensity, arbitrary Angle of automatic control, It also improves the Angle error between the bolt ball plane and has obvious economic effect.

2.Technical parameter for Ball milling and drilling machine:

3.Characters for Ball milling and drilling machine:

3.1 There are obvious economic effects.

3.2 High efficiency, low cost, strong adaptability.

3.3 Joint CNC turntable center positioning to increase the ball center, reduce the size and shape errors.

3.4 The same process without tool change CNC machining, no need to change the tool in one machining.

3.5 Automatic production process, less production preparation time.

3.6 Reduce labor intensity, requiring a low level of operators.

4.Advantages comparing to traditional lathe:
