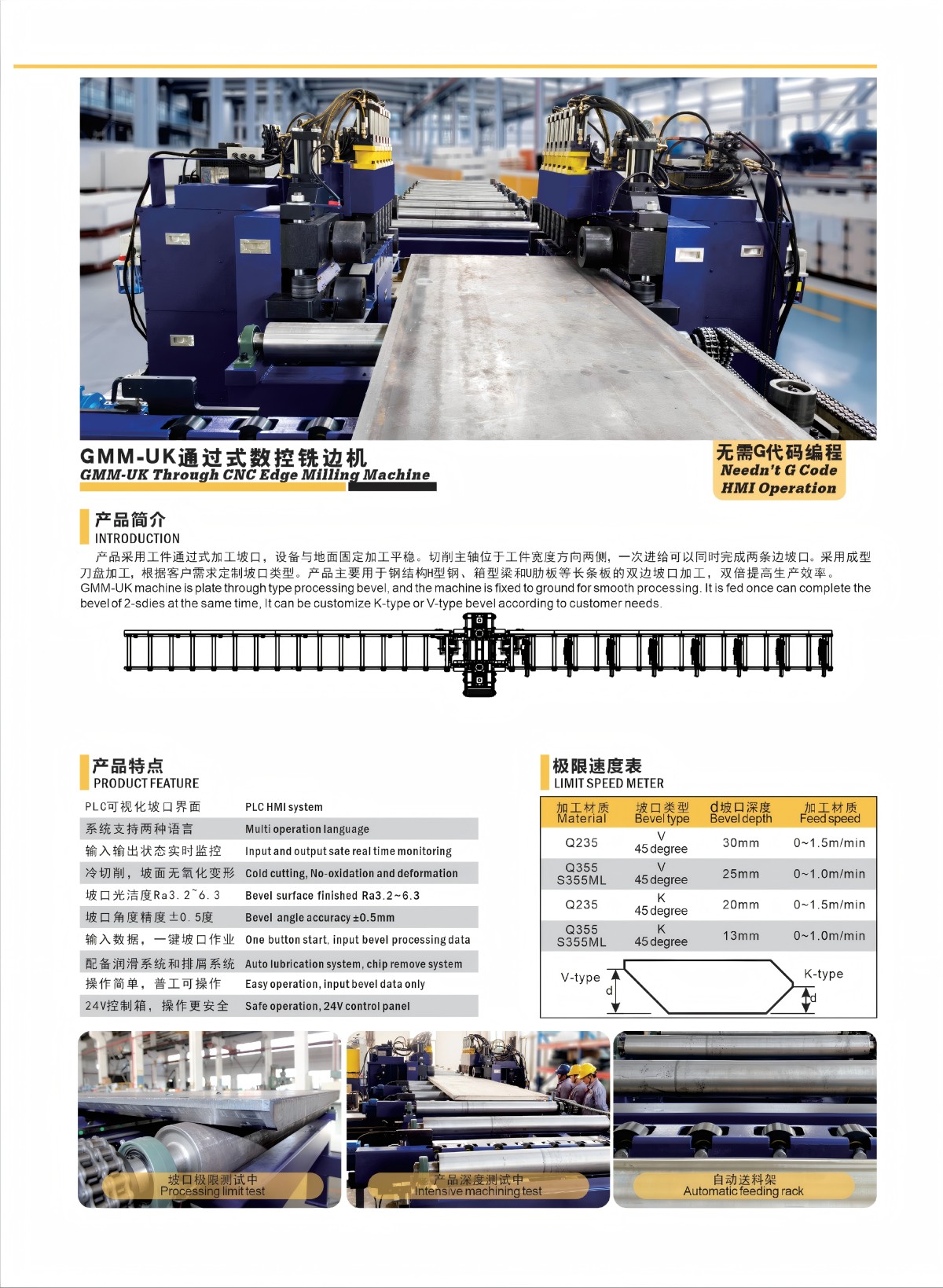

1.Introduction for Through CNC Milling machine:

This machine is plate through type processing bevel, and the machine is fxed to ground for smooth processing. It is fed once can complete the bevel of 2-sdies at the same time, It can be customize K-type or V-type bevel according to customer needs.

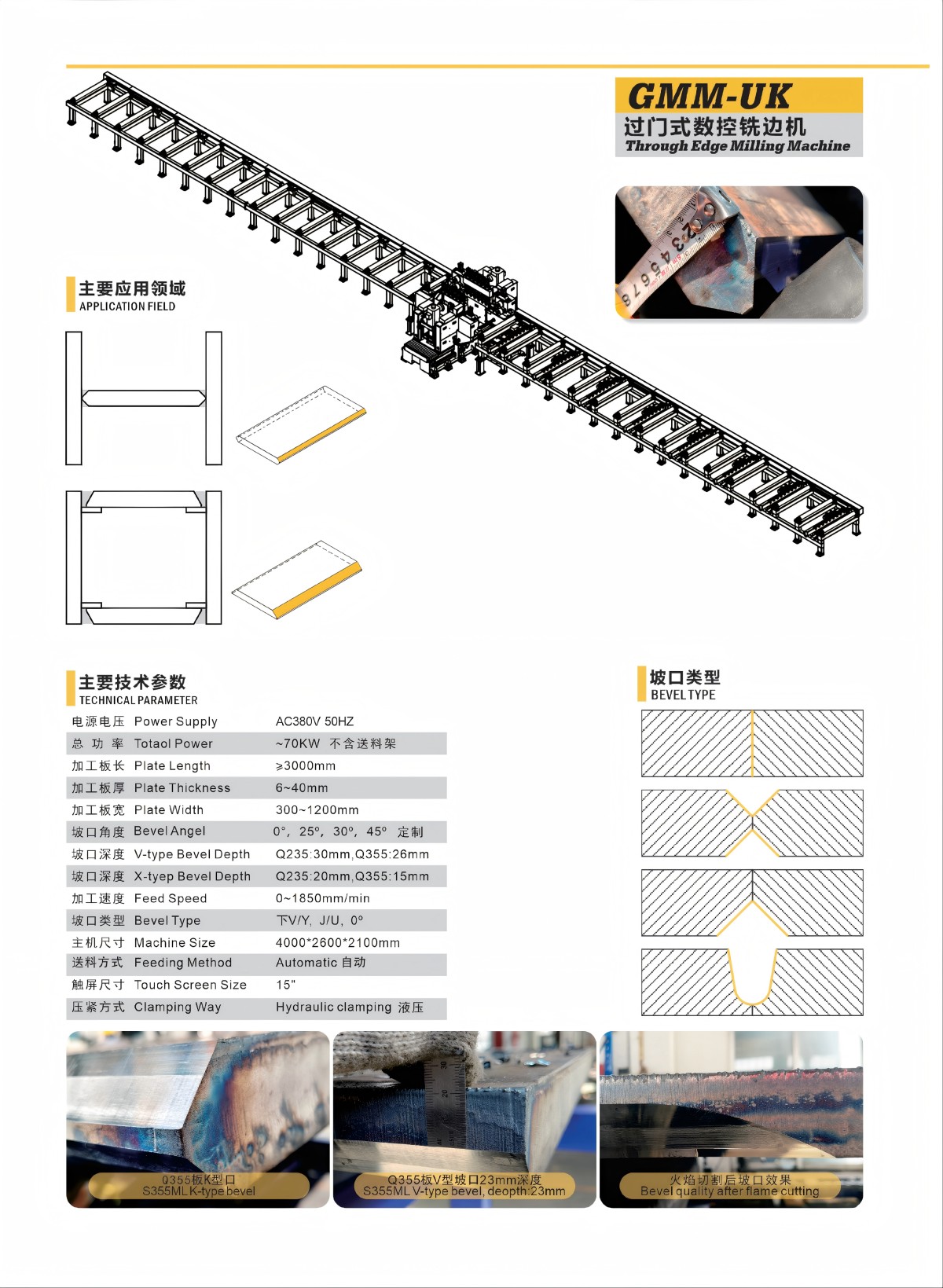

2.Technical parameter for Through CNC Milling machine：

3.Characters for Through CNC Milling machine:

1 .High Efficiency and High Precision: Utilizing the principle of high-speed milling, the processing accuracy can reach the micron level. It can form various bevels such as inclined edges, straight edges, U-shaped, V-shaped, and K-shaped in one operation, without the need for secondary grinding.

2. High degree of automation: The automatic walking type and CNC type can achieve automatic clamping, edge detection, feed, and return movement, reducing manual intervention and enhancing production efficiency.

3. Strong adaptability: It can process various materials such as carbon steel, stainless steel, and aluminum plates; the thickness range is wide, with the standard model covering 6–80mm, and some heavy-duty models (such as the non-pressure beam type) can reach 6–400mm.

4. The adjustable range of the bevel angle is typically from 0° to 90°. Some models support an angle range of 15° to 60° or 30° to 60°.

5. Low Energy Consumption and Low Cost: Compared to the edge planer, it has the advantages of lower price, lower energy consumption, higher finish quality, and easier maintenance.

6. Advanced Structure: The guide rails are designed for disassembly and are heat-treated to ensure smooth operation; the return system is independent of the feed system, enhancing efficiency; the angle of the cutter head can be adjusted flexibly, and standard and customized cutter heads can be interchanged.
