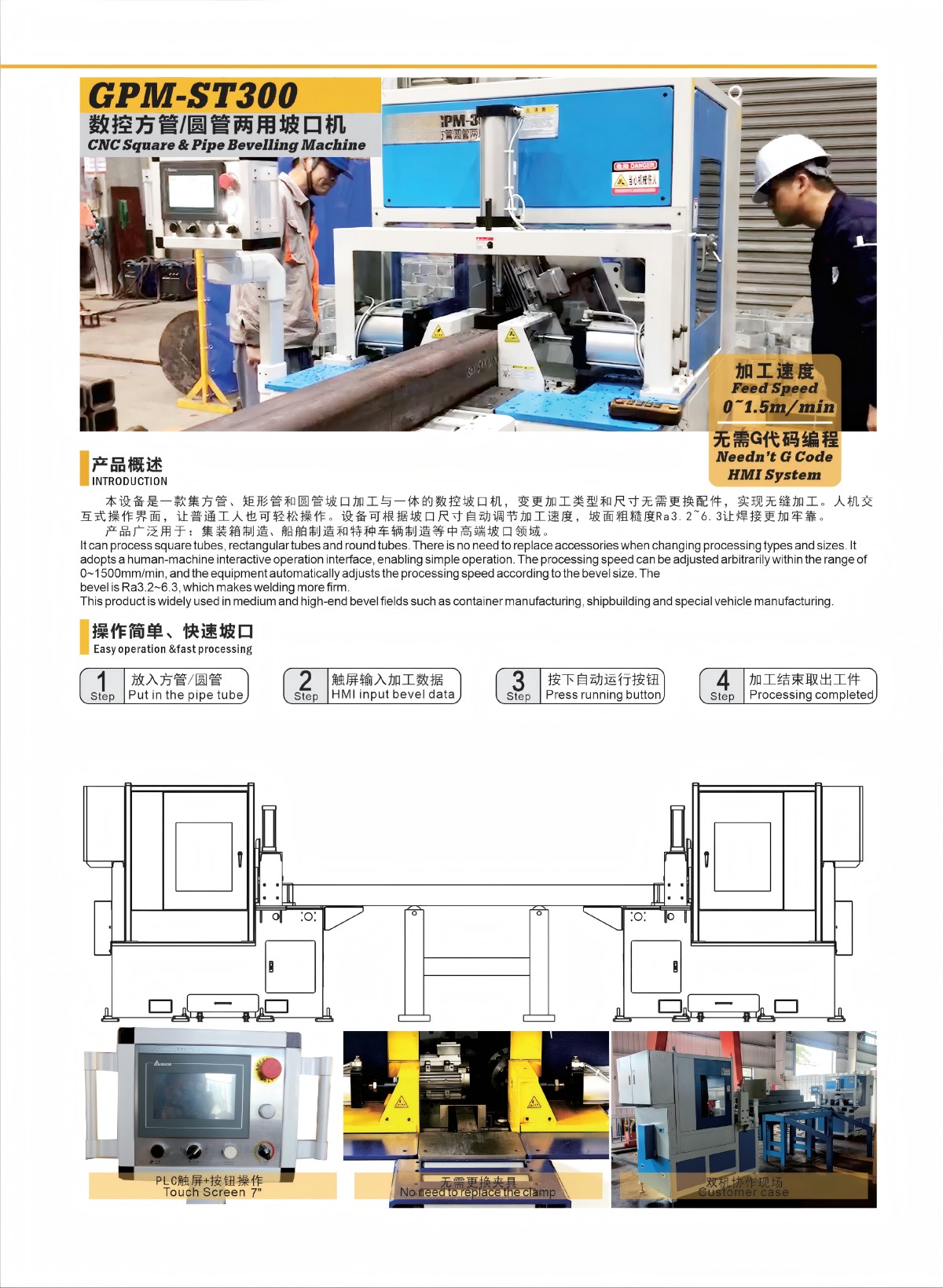

1.Introduction for CNC square and pipe beveling machine:

It can process square tubes. Rectangular tubes and round tubes. There is no need to replace accessories when changing processing types and sizes.

It adopts a human-machine interactive operation interface,enabling simple operation. The processing speed can be adjusted arbitrarily within the range of 0~1500mm/min, and the equipment automatically adjusts the processing speed according to the bevel size. The bevel is Ra3.2~6.3, which makes welding more firm.

This product is widely used in medium and high-end bevel fields such as container manufacturing,shipbuilding and special vehicle manufacturing.

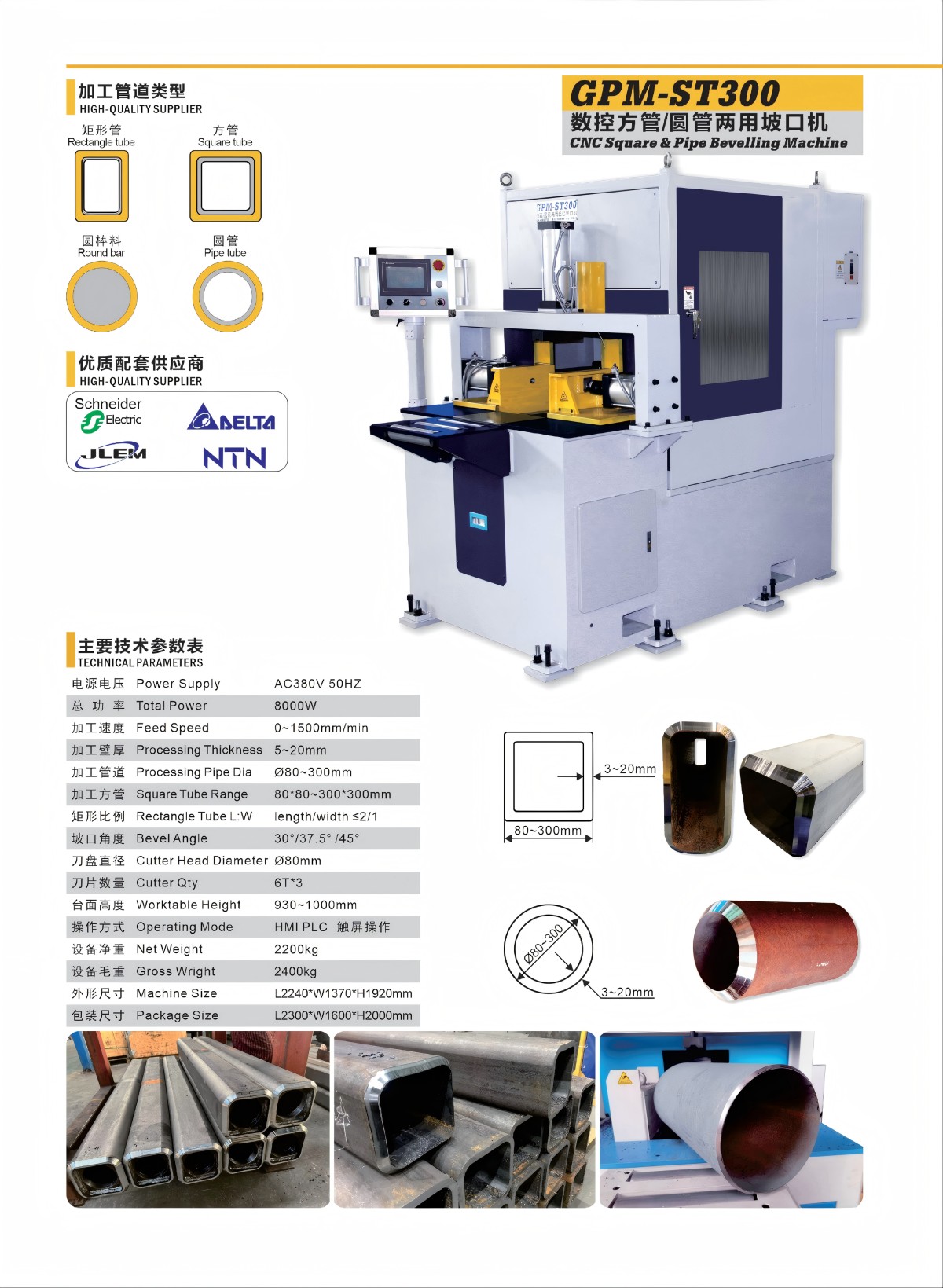

2.Technical parameter for CNC square and pipe beveling machine

3.Characters for CNC square and pipe beveling machine:

3.1 High Efficiency and High Precision: Utilizing the principle of high-speed milling, the processing accuracy can reach the micron level. It can form various bevels such as inclined edges, straight edges, U-shaped, V-shaped, and K-shaped in one operation, without the need for secondary grinding.

3.2 High degree of automation: The automatic walking type and CNC type can achieve automatic clamping, edge detection, feed, and return movement, reducing manual intervention and enhancing production efficiency.

3.3 Strong adaptability: It can process various materials such as carbon steel, stainless steel, and aluminum plates; the thickness range is wide, with the standard model covering 6–80mm, and some heavy-duty models (such as the non-pressure beam type) can reach 6–400mm.

3.4 The adjustable range of the bevel angle is typically from 0° to 90°. Some models support an angle range of 15° to 60° or 30° to 60°.

3.5 Low Energy Consumption and Low Cost: Compared to the edge planer, it has the advantages of lower price, lower energy consumption, higher finish quality, and easier maintenance.

3.6 Advanced Structure: The guide rails are designed for disassembly and are heat-treated to ensure smooth operation; the return system is independent of the feed system, enhancing efficiency; the angle of the cutter head can be adjusted flexibly, and standard and customized cutter heads can be interchanged.
