Radial Drilling Machine: The 2026 Complete Industry Guide for Manufacturing & Metalworking Professionals

What Is A Radial Drilling Machine?

A radial drilling machine is a stationary, floor-mounted industrial drilling system characterized by a horizontally adjustable arm (radial arm) that supports a movable drill head. Unlike bench or pillar drills, it enables drilling at multiple positions on oversized workpieces—such as H-beams, pressure vessels, flanges, and structural frames—without repositioning the part. Its core components include a rigid column, telescoping radial arm, sliding drill head carriage, motorized spindle with variable speed control, and precision locking mechanisms.

Defined under ISO 230-1 (machine tool testing standards) and EN 60204-1 (electrical safety), modern radial drilling machines deliver ±0.05 mm positional repeatability and torque capacities up to 1,200 N·m. The term 'radial drilling machine' reflects both mechanical architecture and functional scope—not just hole-making, but high-accuracy, multi-axis drilling in single-setup operations critical for structural integrity in heavy fabrication.

Wuxi Armada’s radial drilling machines integrate hardened linear guideways, servo-assisted arm positioning, and CNC-ready interfaces—ensuring compatibility with automated workflows while maintaining full manual override for operator flexibility. Each unit undergoes dynamic load testing prior to CE and SGS certification.

Why Choose A Radial Drilling Machine Over Alternatives?

Radial drilling machines eliminate costly part handling, reduce setup time by up to 65% compared to CNC machining centers for large-section drilling, and outperform portable magnetic drills in rigidity and repeatability. In H-beam production lines—where Wuxi Armada supplies integrated solutions including H beam 3D drilling machines—the radial drilling machine serves as the backbone for flange and web hole preparation before welding and assembly.

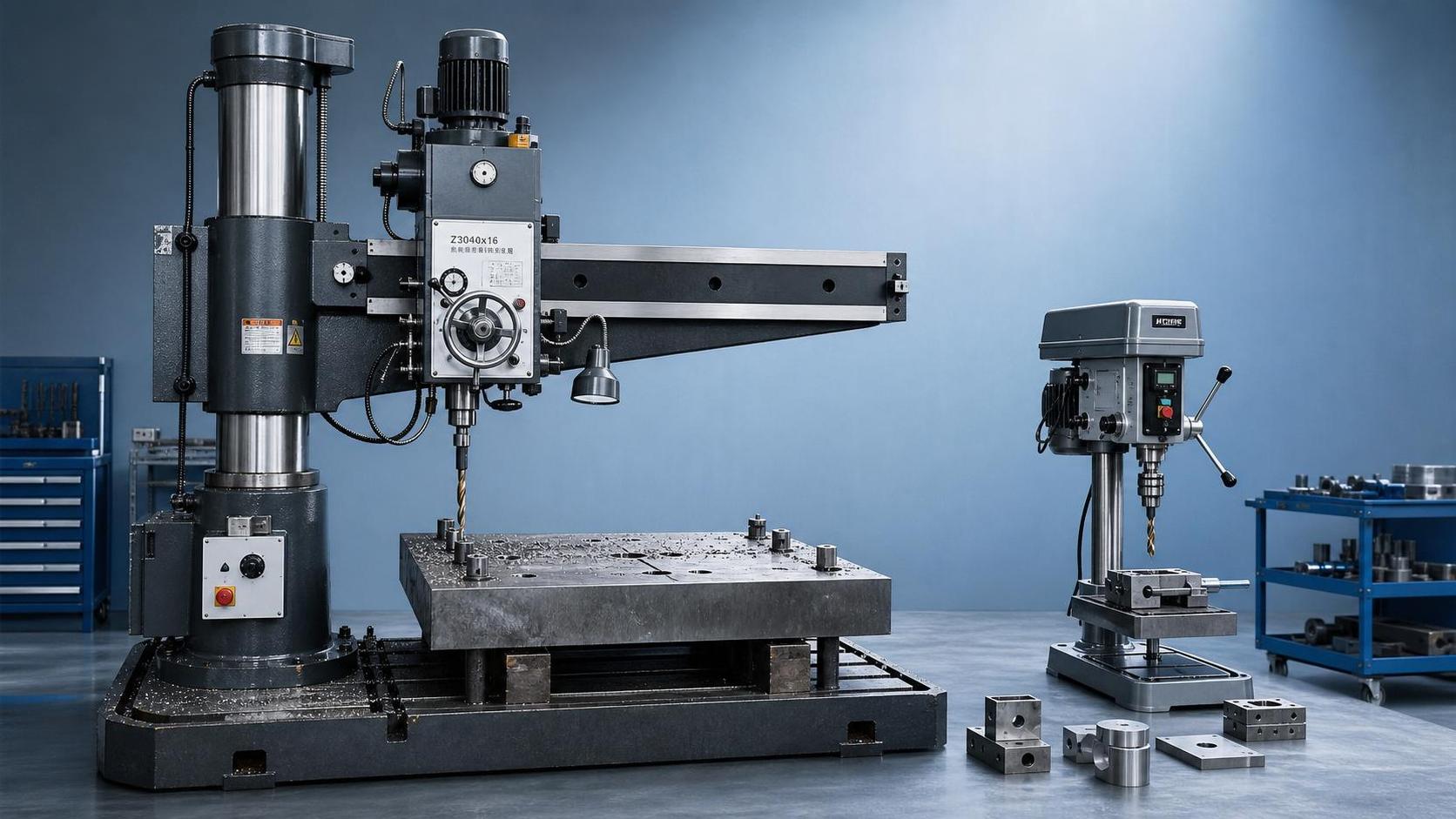

Unlike conventional drill presses, a radial drilling machine accommodates irregular geometries without fixturing complexity. Its extended reach (up to 2,500 mm arm length) and vertical travel (800–1,200 mm) allow access to recessed or elevated surfaces unreachable by gantry-based systems. For fabricators serving oil & gas, shipbuilding, or infrastructure sectors, this translates directly into lower scrap rates and higher first-pass yield.

Wuxi Armada’s radial drilling machines are engineered for interoperability within multi-machine cells—e.g., paired with H beam tilting machines or horizontal H beam welding lines—enabling seamless workflow integration and data traceability via optional PLC and Modbus RTU connectivity.

Who Uses Radial Drilling Machines?

Primary users include structural steel fabricators, boiler and pressure vessel manufacturers, wind turbine tower producers, bridge construction contractors, and heavy equipment OEMs. Decision-makers range from shop floor supervisors evaluating throughput bottlenecks to procurement directors assessing TCO across capital equipment lifecycles.

Global case evidence confirms adoption across diverse regulatory environments: URALSTANKOIMPORT (Russia) deployed Wuxi Armada radial drilling machines for pipeline support fabrication under GOST compliance; Zein Steel Industries Co.LLC (UAE) integrated them into ASME Section VIII-certified vessel workshops; Estructuras Metalicas Girders Chile Limitada uses them for seismic-grade building frame production aligned with NCh 2011 standards.

Maintenance technicians, CNC programmers, and quality assurance leads also rely on radial drilling machines for repeatable hole patterns—especially where GD&T callouts demand positional tolerance control beyond ±0.1 mm. Their ergonomic design reduces operator fatigue during extended shifts, supporting ISO 11227 human factors guidelines.

Where And When Is It Deployed?

Radial drilling machines operate in climate-controlled fabrication halls, outdoor pre-assembly yards, and mobile field workshops—provided foundation stability and power supply meet IEC 60034 motor specifications. Key deployment triggers include batch production of identical structural members, prototype validation requiring rapid iteration, and retrofit projects where floor space limits gantry installation.

Wuxi Armada’s units feature IP54-rated enclosures, vibration-dampened base plates, and optional hydraulic leveling feet—enabling stable operation on reinforced concrete slabs or temporary steel grating. In PT. Cahaya Mas Cemerlang’s (Indonesia) offshore module yard, radial drilling machines completed 92% of flange drilling tasks within 15-minute cycle times—meeting tight delivery windows for FPSO deck sections.

Seasonal maintenance cycles align with annual calibration intervals per ISO 17025-accredited labs. Wuxi Armada recommends preventive servicing every 1,500 operating hours—including spindle bearing inspection, arm rail lubrication, and encoder verification—to sustain accuracy over 12+ years of service life.

How Is It Built And Validated?

Wuxi Armada manufactures radial drilling machines using stress-relieved cast iron columns (ASTM A48 Class 30B), precision-ground radial arms with dual V-groove/T-slot guidance, and high-torque AC vector drives. Spindle housings incorporate sealed angular contact bearings with automatic grease replenishment systems—reducing downtime between deep-hole drilling sequences.

Each unit undergoes three-stage quality control: raw material certification (mill test reports), in-process dimensional verification (CMM and laser tracker), and final performance validation (load testing at 110% rated capacity, thermal stability monitoring over 8-hour runs). All units carry ISO 9001:2015, CE, and SGS certificates—validating conformity with Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU.

Installation includes on-site commissioning: laser alignment of column verticality, arm parallelism verification, and drill head concentricity checks. Wuxi Armada provides bilingual technical documentation, spare parts schematics, and remote diagnostics support—ensuring operational readiness within 72 hours of delivery.

How Much Does It Cost To Own And Operate?

Total cost of ownership (TCO) for a radial drilling machine spans five key elements: acquisition (45–55%), energy consumption (12–18%), scheduled maintenance (10–14%), unscheduled repairs (5–8%), and productivity loss due to downtime (8–12%). Wuxi Armada’s models reduce TCO through regenerative braking drives (cutting energy use by 22%), modular component design (cutting repair lead time by 40%), and predictive maintenance alerts via IoT gateway options.

ROI analysis for mid-tier radial drilling machines shows breakeven within 14–18 months when replacing two manual drill stations or one undersized CNC drill center. Case data from Regional Engineering Works (South Africa) indicates 27% labor cost reduction and 33% faster throughput on boiler drum drilling—achieving ROI in 11 months with 2-shift operation.

Procurement teams should factor in lifecycle scalability: Wuxi Armada offers upgrade paths—from manual feed to servo-controlled Z-axis, or from analog controls to full CNC integration—preserving initial investment while adapting to evolving automation requirements. Spare parts availability (guaranteed 15-year stockholding) further de-risks long-term operational continuity.
